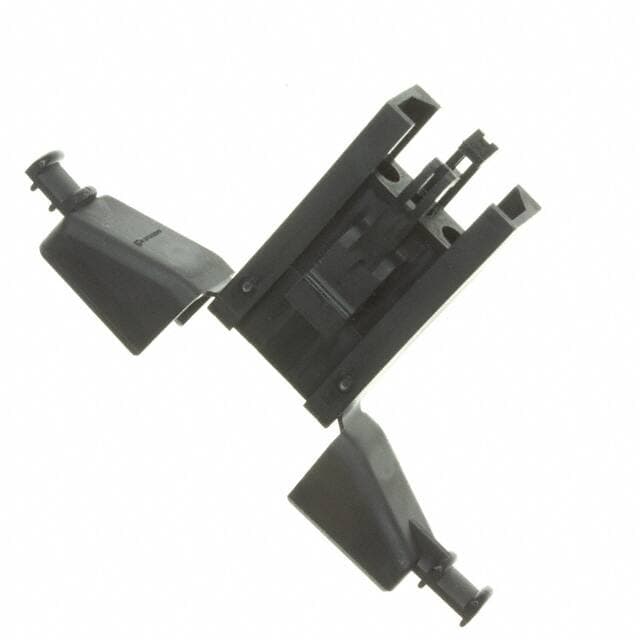

SOURIAU-SUNBANK SMS3PDH1

Manufacturer No:

SMS3PDH1

Manufacturer:

SOURIAU-SUNBANK

Package:

Description:

1 Rows Plug Black 3 Positions Free Hanging (In-Line) Male or Female Crimp SMS Polyamide

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMS3PDH1 information

SOURIAU-SUNBANK SMS3PDH1 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS3PDH1.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Gold

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Polyamide

Series
SMS

Feature
Strain Relief

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Connector Type
Plug

Number of Positions
3

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
1

Gender
Male

Additional Feature
TRIM TRIO

Fastening Type
Latch Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Pitch
0.200 5.08mm

Total Number of Contacts
3

Orientation
Straight

Depth
57.1mm

Current Rating
5A

Empty Shell
NO

Operating Supply Voltage
2kV

Insulation Resistance
5GOhm

Note
Contacts Not Included

Contact Termination
Crimp

Length
69mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-2

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS3PDH1.

datasheets:

souriausunbank-sms15pdh1-datasheets-5166.pdf

SMS3PDH1 Overview

Packaging is Plug.Free Hanging (In-Line) is the mounting type.As a product of the SMS Series, it can be found in this category.There are also other features such as TRIM TRIO, to name only a few.With its Strain Relief feature, it is more powerful in many ways.In this case, Free Hanging mounts the part.The memory's operating supply voltage is 2kV.

SMS3PDH1 Features

SMS series

SMS3PDH1 Applications

There are a lot of SOURIAU-SUNBANK
SMS3PDH1 Rectangular Connectors applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
