SOURIAU-SUNBANK SMS36PDH1

Manufacturer No:

SMS36PDH1

Manufacturer:

SOURIAU-SUNBANK

Package:

Description:

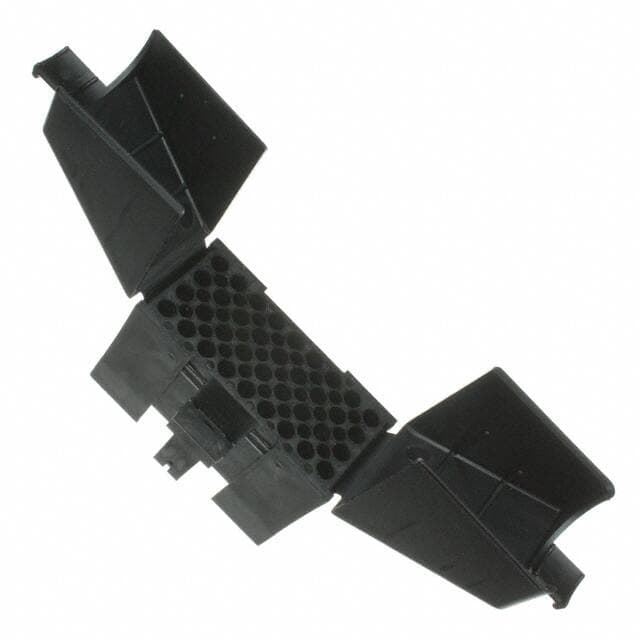

4 Rows Plug Black 36 Positions Free Hanging (In-Line) Male or Female Crimp SMS Polyamide

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMS36PDH1 information

SOURIAU-SUNBANK SMS36PDH1 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS36PDH1.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
NOT SPECIFIED

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Polyamide

Series
SMS

Feature
Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

ECCN Code
EAR99

Connector Type
Plug

Number of Positions
36

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
4

Additional Feature
TRIM TRIO

Fastening Type
Latch Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male or Female

Pitch
0.200 5.08mm

Total Number of Contacts
36

Orientation
Straight

Depth
71.2mm

Contact Gender
Male

Empty Shell
NO

Row Spacing
0.200 (5.08mm)

Note
Contacts Not Included

Contact Termination
Crimp

Length
128mm

Width
49.1mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-2

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS36PDH1.

datasheets:

souriausunbank-sms15pdh1-datasheets-5166.pdf

SMS36PDH1 Overview

The product is packaged in Plug.This device is mounted in the Free Hanging (In-Line) position.There is a product in the SMS Series.To name a few, there is also TRIM TRIO.There are a number of advantages to its Strain Relief feature.Part Free Hanging is mounted to the part.

SMS36PDH1 Features

SMS series

SMS36PDH1 Applications

There are a lot of SOURIAU-SUNBANK
SMS36PDH1 Rectangular Connectors applications.

Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
