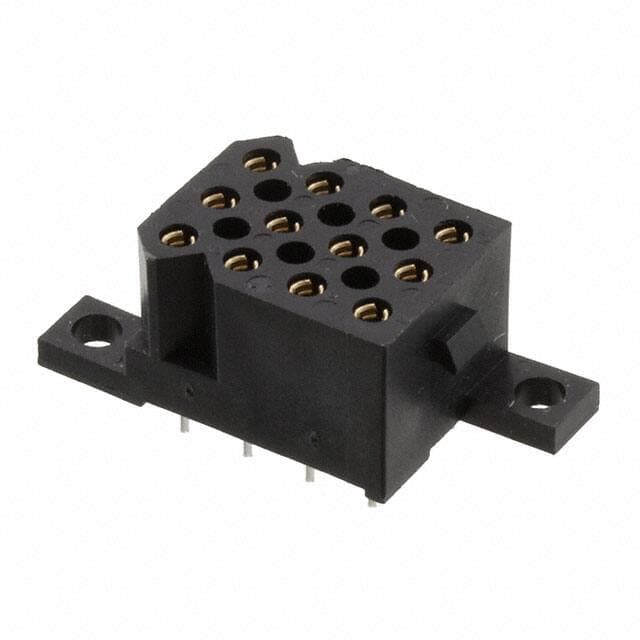

SOURIAU-SUNBANK SMS12SE3K9

Manufacturer No:

SMS12SE3K9

Manufacturer:

SOURIAU-SUNBANK

Package:

Description:

4 Rows Receptacle Solder Copper Alloy Through Hole Bulk Gold Thermoplastic, Glass Filled 12 Positions Female Socket

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMS12SE3K9 information

SOURIAU-SUNBANK SMS12SE3K9 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS12SE3K9.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Circular

Insulation Material
Thermoplastic, Glass Filled

Shell Material
GLASS FILLED THERMOPLAST

Housing Material
Thermoplastic

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
SMS

Feature
Mounting Flange

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle

Number of Positions
12

Number of Rows
4

Voltage - Rated
2kV

Fastening Type
Locking Ramp

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Female Socket

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Ingress Protection
IP40

Depth
16.2mm

Insulation Height
0.528 13.40mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Current Rating
5A

Pitch - Mating
0.200 5.08mm

Insulation Color
Black

Row Spacing - Mating
0.200 (5.08mm)

Contact Length - Post
0.134 3.40mm

Contact Finish - Post
Tin

Contact Gender
Female

Empty Shell
NO

Insulation Resistance
5GOhm

Max Current Rating
5A

Length
35.1mm

Contact Finish Thickness - Mating
16.0?in 0.41?m

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS12SE3K9.

datasheets:

souriausunbank-sms24se3k9-datasheets-5534.pdf

SMS12SE3K9 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SMS Series, it can be found in this category.With its Mounting Flange feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.

SMS12SE3K9 Features

SMS series

SMS12SE3K9 Applications

There are a lot of SOURIAU-SUNBANK
SMS12SE3K9 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
