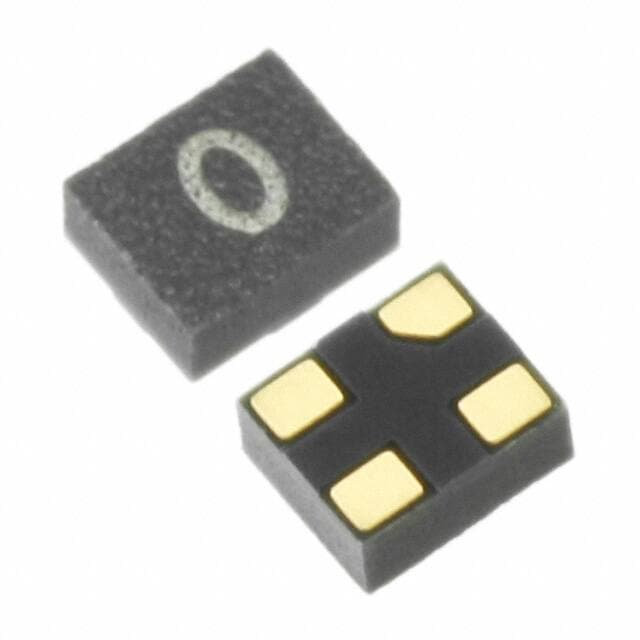

Skyworks SMP1345-518

Manufacturer No:

SMP1345-518

Manufacturer:

Skyworks

Package:

4-SMD, No Lead

Description:

PIN - Single 0.285pF @ 10V 1MHz -65°C~150°C TA 4 Terminations SILICON 245 BOTTOM Tape & Reel (TR) 4-SMD, No Lead

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMP1345-518 information

Skyworks SMP1345-518 technical specifications, attributes, parameters and parts with similar specifications to Skyworks SMP1345-518.

Type
Parameter

Package / Case
4-SMD, No Lead

Surface Mount
YES

Diode Element Material
SILICON

Operating Temperature
-65°C~150°C TA

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8541.10.00.80

Technology
POSITIVE-INTRINSIC-NEGATIVE

Terminal Position
BOTTOM

Terminal Form
BUTT

Peak Reflow Temperature (Cel)
245

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
SMP1345-518

Pin Count
4

JESD-30 Code
R-PBGA-B4

Qualification Status
Not Qualified

Number of Elements
4

Power Dissipation-Max
250mW

Diode Type
PIN - Single

Case Connection
ISOLATED

Application
ATTENUATOR; SWITCHING

Current - Max
150mA

Capacitance @ Vr, F
0.285pF @ 10V 1MHz

Voltage - Peak Reverse (Max)
50V

Frequency Band
C B

Resistance @ If, F
2Ohm @ 10mA 100MHz

Diode Capacitance-Max
0.2pF

Minority Carrier Lifetime-Nom
0.1 µs

Diode Forward Resistance-Max
2Ohm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Skyworks SMP1345-518.

PCN Obsolescence/ EOL:

skyworkssolutionsinc-sky6501592lf-pcnobsolescenceeol-0173.pdf

SMP1345-518 Overview

RF diode operates at 150mA volts, which is the maximal current RF diode can handle.Device specifications specify a maximum reverse voltage of 50V for this device.

SMP1345-518 Features

from a maximum current of 150mA volts

SMP1345-518 Applications

There are a lot of Skyworks Solutions Inc.
SMP1345-518 applications of RF diodes.

Ultra high-speed switching
Clamping circuits
Diode ring mixer
RF detector
RF voltage doubler
Wearables
Smart metering
Set top boxes
RF attenuators and switches
Low-loss, high-power limiters
