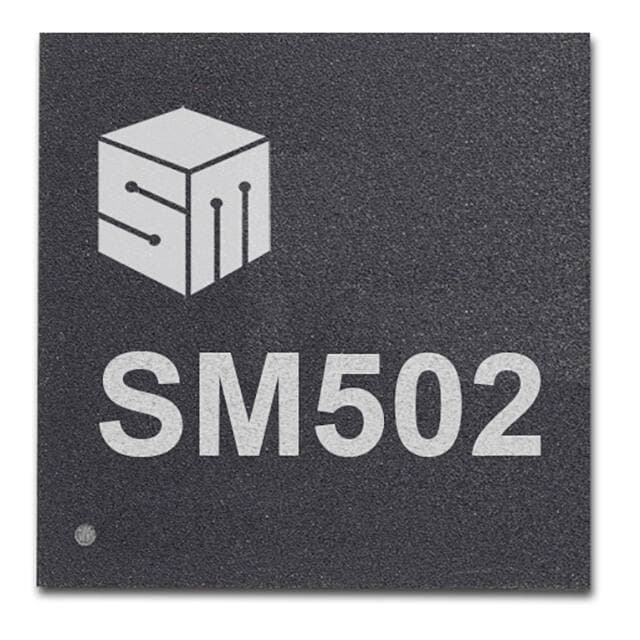

Silicon Motion, Inc. SM502GX00LF00-AC

Manufacturer No:

SM502GX00LF00-AC

Manufacturer:

Silicon Motion, Inc.

Package:

297-LFBGA

Description:

0.8mm SM502 Microprocessor 1.8V 297-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM502GX00LF00-AC information

Silicon Motion, Inc. SM502GX00LF00-AC technical specifications, attributes, parameters and parts with similar specifications to Silicon Motion, Inc. SM502GX00LF00-AC.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
297-LFBGA

Surface Mount
YES

Operating Temperature
0°C~70°C

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
297

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
297

JESD-30 Code
S-PBGA-B297

Supply Voltage-Max (Vsup)
1.89V

Supply Voltage-Min (Vsup)
1.71V

Speed
240MHz

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR CIRCUIT

Core Processor
SM502

Number of Cores/Bus Width
1 Core

Graphics Acceleration
Yes

USB
USB 1.1 (1)

Additional Interfaces
PCI

Length
19mm

Height Seated (Max)
1.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Silicon Motion, Inc. SM502GX00LF00-AC.

Datasheets:

siliconmotioninc-sm502ge08lf02ac-datasheets-9723.pdf

SM502GX00LF00-AC Overview

Packed in 297-LFBGA, the microprocessor is convenient for shipping overseas. The CPU has 1 Core cores/Bus width. Extended operating temperature around 0°C~70°C. This CPU is cored with a SM502 processor. This CPU uses SDR RAM controllers. To serve better this microprocessor features PCI interfaces. As far as the uPs/uCs/Peripheral ICs type is concerned, this is a MICROPROCESSOR CIRCUIT. There are 297 terminations totally. With a 1.8V voltage supply, the part should be turned on and run. The supply voltage should not exceed 1.89V. 297 pins are injected into the part body.

SM502GX00LF00-AC Features

SM502 Core

SM502GX00LF00-AC Applications

There are a lot of Silicon Motion, Inc.
SM502GX00LF00-AC Microprocessor applications.

Measurement and control field
Automatic control
Equipment control
Instrument control
Consumer electronics products
Toys
Robots
Radio
Television
Heater/Fan
