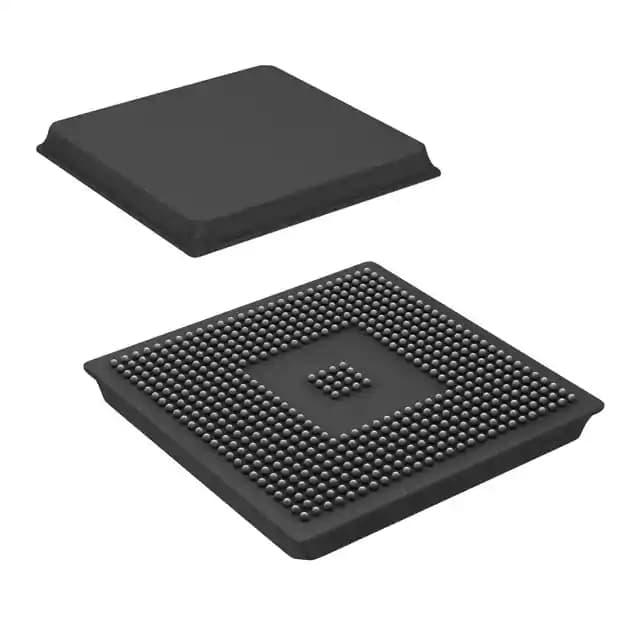

TI SM320DM642AGDKI7EP

Manufacturer No:

SM320DM642AGDKI7EP

Manufacturer:

Package:

548-BFBGA, FCCSPBGA

Description:

0.8mm CPLD TMS320DM64x, DaVinci? Series 320DM642 548 Pin 720MHz 1.4V 548-BFBGA, FCCSPBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM320DM642AGDKI7EP information

TI SM320DM642AGDKI7EP technical specifications, attributes, parameters and parts with similar specifications to TI SM320DM642AGDKI7EP.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
548-BFBGA, FCCSPBGA

Number of Pins
548

Weight
2.44611g

Operating Temperature
-40°C~85°C TC

Packaging
Tray

Series
TMS320DM64x, DaVinci?

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
548

Type
Fixed Point

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.4V

Terminal Pitch
0.8mm

Frequency
720MHz

Pin Count
548

Operating Supply Voltage
1.4V

Interface
Host Interface, I2C, McASP, McBSP

Max Supply Voltage
3.46V

Min Supply Voltage
1.36V

Number of I/O
16

Bit Size
32

Data Bus Width
32b

Number of Timers/Counters
3

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
YES

Voltage - I/O
3.30V

Number of External Interrupts
4

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

Voltage - Core
1.40V

On Chip Data RAM
288kB

Number of DMA Channels
64

Height
2.8mm

Length
23mm

Width
23mm

Download datasheets and manufacturer documentation for TI SM320DM642AGDKI7EP.

SM320DM642AGDKI7EP Overview

It is a kind of electronic component available in the 548-BFBGA, FCCSPBGA package.It is provided with a packaging way of Tray.As a member of Fixed Point, it is ideally suitable for a wide range of applications.It is mounted in the way of Surface Mount.Operating at the temperature of -40°C~85°C TC ensures its normal operation.The analog voltage range of 3.30V refers to the voltage that can be input or ouput.This digital signal processor is included into the TMS320DM64x, DaVinci? series.There are 548 terminations for its uses.It operates with the supply voltage of 1.4V.There are 548 component pins.548 pins can be found in its configuration.Based on its base part number of 320DM642, many ralated parts can be found.It is specifically designed to operate with the frequency of 720MHz.It adopts Surface Mount as its mounting way.Based on its specific characteristics, this device can be classified into the subcategory of Digital Signal Processors.The minimum voltage supplied to this device is as low as 1.36V.The maximum voltage supplied to this device amounts to 3.46V.It operates with the supply voltage of 1.4V.3 timers/counters are used to measure time and count external events.The device is equipped with 16 I/Os.There are 4 interrupts caused by an external source.There are 64 DMA channels used to transfer data without exposing the CPU to a work overload.

SM320DM642AGDKI7EP Features

Supplied in the 548-BFBGA, FCCSPBGA package
Operating supply voltage of 1.4V
3 timers/counters
16 I/Os
4 external interrupts

SM320DM642AGDKI7EP Applications

There are a lot of Texas Instruments
SM320DM642AGDKI7EP DSP applications.

Audio signal
Speech processing
Radar
Seismology
Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
