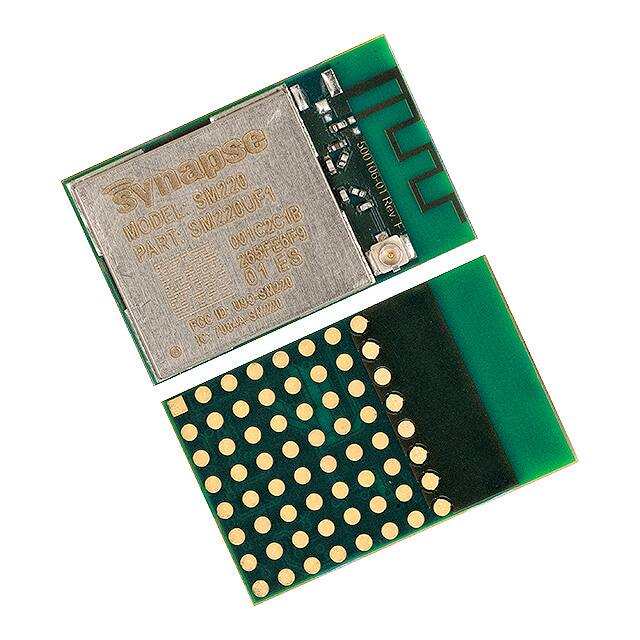

Synapse Wireless SM220UF1
Synapse Wireless SM220UF1

Synapse Wireless SM220UF1

Manufacturer No:

SM220UF1

Manufacturer:

Synapse Wireless

Package:

64-SMD Module

Description:

2.4GHz 802.15.4 -40°C~85°C 2V~3.6V I2C, JTAG, SPI, UART Cut Tape (CT) Integrated, Chip + U.FL 2Mbps 20dBm 64-SMD Module

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM220UF1 information

Synapse Wireless SM220UF1 technical specifications, attributes, parameters and parts with similar specifications to Synapse Wireless SM220UF1.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 64-SMD Module
  • Manufacturer Package Identifier
  • SM220UF1
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • SNAP® RF Engine®
  • Published
  • 2015
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Voltage - Supply
  • 2V~3.6V
  • Frequency
  • 2.4GHz
  • Interface
  • I2C, SPI, UART
  • Memory Size
  • 128kB Flash 4kB EEPROM
  • Data Rate
  • 2Mbps
  • Power - Output
  • 20dBm
  • RF Family/Standard
  • 802.15.4
  • Antenna Type
  • Integrated, Chip + U.FL
  • Number of ADC Channels
  • 7
  • Serial Interfaces
  • I2C, JTAG, SPI, UART
  • Current - Receiving
  • 7.8mA~22mA
  • Current - Transmitting
  • 55mA~150mA
  • Modulation
  • DSSS, O-QPSK
  • Number of GPIO
  • 32
  • Height
  • 3.277mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Synapse Wireless SM220UF1.

Datasheets:

SM220UF1 Overview


As a RF Transceiver' mounting method, Surface Mount is used.Using the Cut Tape (CT) package, this RF Transceiver module optimizes the performance of the RF Transceiver module 12v.In order for it to operate properly, Transceiver's operating temperature should be at -40°C~85°C.A RF Transceiver Module, it is a member of the SNAP® RF Engine® family.RF Transceivers that can supply 2V~3.6V volts are available.A 2.4GHz frequency is used by the RF Transceiver Module.As a result of its Surface Mount mounting, this Transceiver is widely used in a wide variety of applications.

SM220UF1 Features


Surface Mount
Cut Tape (CT) package
2V~3.6V volts


SM220UF1 Applications


There are a lot of Synapse Wireless
SM220UF1 RF Transceiver Modules applications.


  • Switch
  • Power management
  • Internet of Things (IoT)
  • Secure Payment
  • Home and Security
  • Health and Fitness
  • Industrial and Data Logger
  • LED Lighting
  • Utility and Smart Energy
  • Thermostats

User Guide
