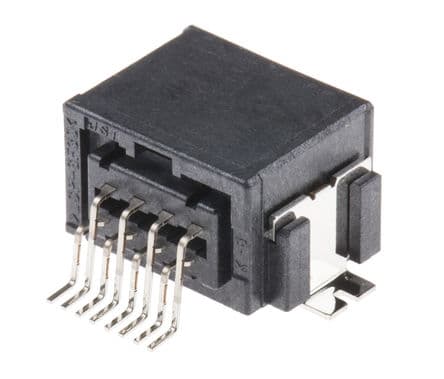

JST SM08B-CPTK-1A-TB

Manufacturer No:

SM08B-CPTK-1A-TB

Manufacturer:

Package:

Description:

CPT Series 2-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 8-Position Board to Cable/Wire 0.366 9.30mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM08B-CPTK-1A-TB information

JST SM08B-CPTK-1A-TB technical specifications, attributes, parameters and parts with similar specifications to JST SM08B-CPTK-1A-TB.

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled

Shell Material
GLASS FILLED LIQUID CRYSTAL POLYMER

Operating Temperature
-40°C~100°C

Packaging
Tape & Reel (TR)

Series
CPT

Published
2010

JESD-609 Code
e3

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
8

Applications
Automotive

Number of Rows
2

Voltage - Rated
50V

Additional Feature
LOW PROFILE; SIDE ENTRY

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Total Number of Contacts
8

Insulation Height
0.366 9.30mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Insulation Color
Black

Row Spacing - Mating
0.079 (2.00mm)

Shrouding
Shrouded - 4 Wall

Contact Finish - Post
Tin

Empty Shell
NO

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST SM08B-CPTK-1A-TB.

Datasheets:

jst-sm08bcptk1atb-datasheets-7475.pdf

jst-sm08bcptk1atb-datasheets-7476.pdf

SM08B-CPTK-1A-TB Overview

Packaging is Header.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the CPT Series, it can be found in this category.There are also other features such as LOW PROFILE; SIDE ENTRY, to name only a few.A possible application of the device would be Automotive.With its Solder Retention feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -40°C~100°C Operating Temperature.
