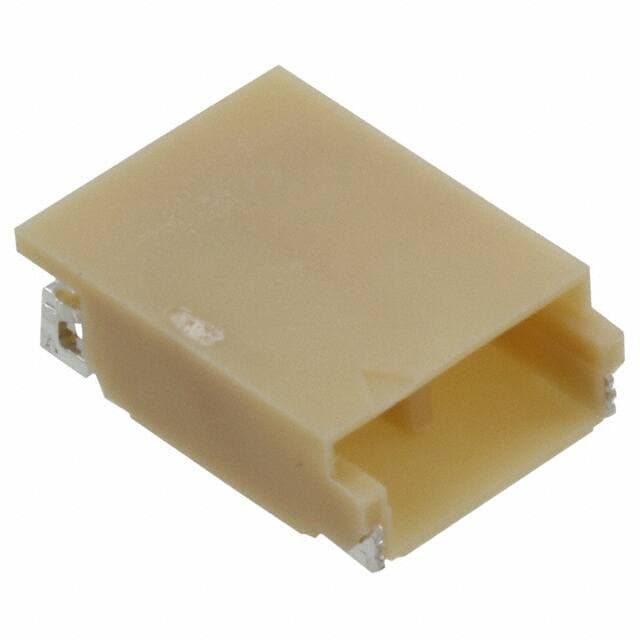

JST SM02B-BHSS-1-TB(LF)(SN)

Manufacturer No:

SM02B-BHSS-1-TB(LF)(SN)

Manufacturer:

Package:

Description:

BHS Series 1-Row Header Solder Tape & Reel (TR) Surface Mount, Right Angle 2-Position Board to Cable/Wire 0.126 3.20mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM02B-BHSS-1-TB(LF)(SN) information

JST SM02B-BHSS-1-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM02B-BHSS-1-TB(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Contact Shape
Square

Housing Material
Polyphthalamide

Manufacturer Package Identifier
SM02B-BHSS-1-TB(LF)(SN)

Contact Finish Mating
Tin

Contact Materials
Brass

Insulation Materials
Polyphthalamide (PPA)

Voltage Rated
1400V

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
BHS

Published
2010

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Gender
Male

HTS Code
8536.69.40.40

Fastening Type
Detent Lock

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
WITH CABLE ASSEMBLY

Total Number of Contacts
2

Orientation
Right Angle

Terminal Pitch
3.5mm

Depth
10.5mm

Insulation Height
0.126 3.20mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.138 3.50mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Housing Color
Natural

Contact Resistance
20mOhm

Max Current Rating
1A

Download datasheets and manufacturer documentation for JST SM02B-BHSS-1-TB(LF)(SN).

Datasheets:

jstsalesamericainc-sm02bbhss1tb-datasheets-2159.pdf

SM02B-BHSS-1-TB(LF)(SN) Overview

Packaging is Header.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the BHS Series, it can be found in this category.There are also other features such as LOW PROFILE, to name only a few.In this case, Surface Mount mounts the part.The device is operating at -25°C~85°C Operating Temperature.
