SKYWORKS SKY72300-21
SKYWORKS SKY72300-21

SKYWORKS SKY72300-21

Manufacturer No:

SKY72300-21

Manufacturer:

SKYWORKS

Package:

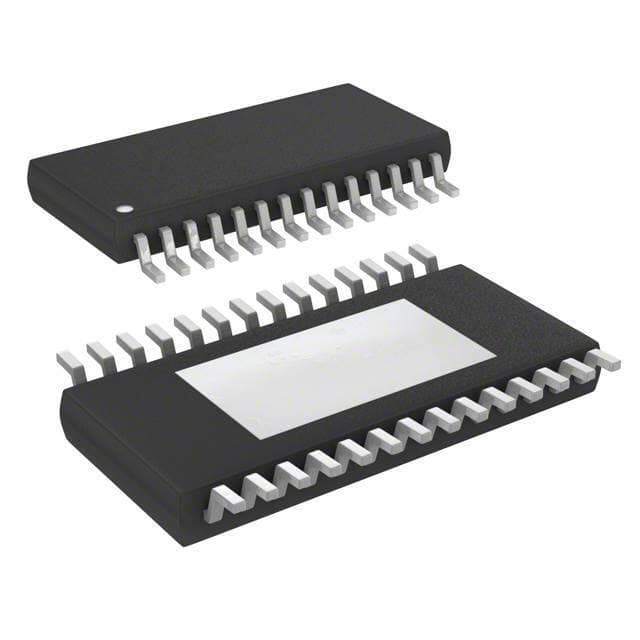

28-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

3V Fractional N Synthesizer Clock Generators 28 Pins 28-TSSOP (0.173, 4.40mm Width) Exposed Pad 28 Terminals Surface Mount 2.7V~3.3V Tape & Reel (TR)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SKY72300-21 information

SKYWORKS SKY72300-21 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS SKY72300-21.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 28-TSSOP (0.173, 4.40mm Width) Exposed Pad
  • Number of Pins
  • 28
  • Weight
  • 402.988471mg
  • Frequency(Max)
  • 2.1GHz
  • Number of Elements
  • 2
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2007
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 28
  • Type
  • Fractional N Synthesizer
  • Voltage - Supply
  • 2.7V~3.3V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Output
  • Clock, Crystal
  • Operating Supply Voltage
  • 3V
  • Power Supplies
  • 3V
  • Number of Circuits
  • 1
  • Input
  • Clock, Crystal
  • Ratio - Input:Output
  • 2:2
  • PLL
  • Yes
  • Differential - Input:Output
  • Yes/Yes
  • Divider/Multiplier
  • Yes/No
  • Height
  • 1.1mm
  • Length
  • 9.7mm
  • Width
  • 6.4mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS SKY72300-21.

Datasheets:

PCN Packaging:

SKY72300-21 Overview


This clock IC is packaged using the Tape & Reel (TR) method. The 28-TSSOP (0.173, 4.40mm Width) Exposed Pad package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. In it, there are 28 terminations to be found. This time clock generator should be voltaged at 3V. A clock generator's input is called Clock, Crystal and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. With the Surface Mount, it is easy to install this electric component on the panel. This clock PLL works with a supply voltage of 2.7V~3.3V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the Clock, Crystal logic levels is presented here. A Fractional N Synthesizer is a classification for the electronic part in question. Microprocessors are specifically designed to use this clock-generating IC, which has a 28-bit output. PF synthesizers is equipped with 28 pins. PLL clock can handle a voltage of 3V as its supply voltage.

SKY72300-21 Features


Available in the 28-TSSOP (0.173, 4.40mm Width) Exposed Pad
Supply voltage of 3V
Operating supply voltage of 3V


SKY72300-21 Applications


There are a lot of Skyworks Solutions Inc.
SKY72300-21 Clock Generators applications.


  • Digital circuits
  • Wireless base station for LTE, LTE-advanced
  • Picocells, femtocells and small cells
  • Sampling clocks for ADC and DAC
  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
  • FPGA and processor clocks
  • Line cards used in telephone exchange
  • Fiber Channel
  • PCI express cards
