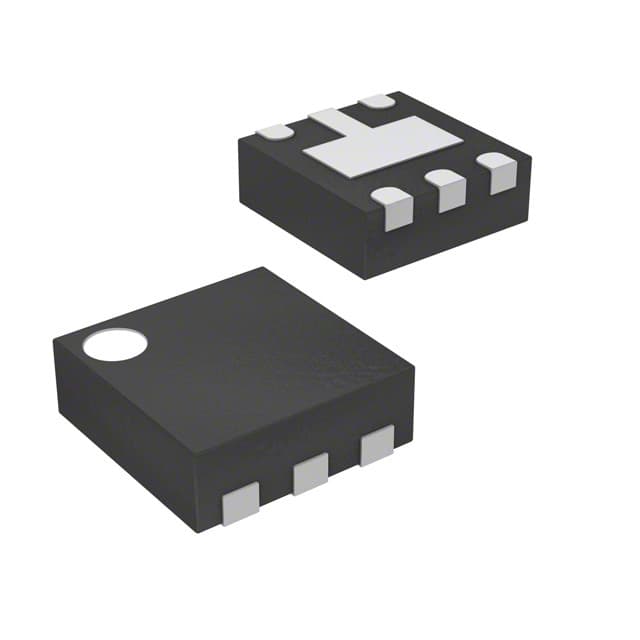

VISHAY SIP4282ADVP3-T1GE3

Manufacturer No:

SIP4282ADVP3-T1GE3

Manufacturer:

VISHAY

Package:

PowerPAK® SC-75-6L

Description:

2/5V P-Channel 0.5mm PMIC 6 Pin PowerPAK® SC-75-6L

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SIP4282ADVP3-T1GE3 information

VISHAY SIP4282ADVP3-T1GE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SIP4282ADVP3-T1GE3.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
PowerPAK® SC-75-6L

Number of Pins
6

Weight
95.991485mg

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2013

Feature
Load Discharge, Slew Rate Controlled

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Resistance
520mOhm

Terminal Finish
Pure Matte Tin (Sn)

Subcategory
Peripheral Drivers

Max Power Dissipation
610mW

Technology
MOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Number of Outputs
1

Output Type
P-Channel

Max Output Current
1.4A

Power Supplies
2/5V

Interface
On/Off

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Turn On Delay Time
20 ?s

Switch Type
General Purpose

Turn-Off Delay Time
4 ?s

Ratio - Input:Output
1:1

Voltage - Load
1.5V~5.5V

Driver Number of Bits
1

Rds On (Typ)
350m ?

Output Current Flow Direction
SOURCE

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY SIP4282ADVP3-T1GE3.

Datasheets:

vishaysiliconix-sip4282adnp3t1ge4-datasheets-7143.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

SIP4282ADVP3-T1GE3 Overview

It's packaged in the way of a Tape & Reel (TR).It's included in the PowerPAK® SC-75-6L package.The mounting type of the LED driver is Surface Mount.It owns General Purpose switch type.The temperature should be set to -40°C~125°C TJ to ensure reliable functioning.By default, it is set to output 1.It uses a supply voltage of Not Required to operate.It has a maximum output voltage of P-Channel volts.The lighting driver has Load Discharge, Slew Rate Controlled features.There are 6 terminations in it.6 pins are used for operation.To meet the operation criteria, the maximum output current drops to 1.4A.It is positioned in the direction of Surface Mount.It is equipped with a total of 6 pins.The LED driver has 520mOhm resistance.This LED driver is self-contained in an econtainer with a capacity of Peripheral Drivers.The power supply of the part is 2/5V.

SIP4282ADVP3-T1GE3 Features

Resistance of 520mOhm

SIP4282ADVP3-T1GE3 Applications

There are a lot of Vishay Siliconix
SIP4282ADVP3-T1GE3 Power Switches ICs applications.

Smartphone and PDA
Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
