VISHAY SIP32413DNP-T1-GE4

Manufacturer No:

SIP32413DNP-T1-GE4

Manufacturer:

VISHAY

Package:

8-UFDFN Exposed Pad

Description:

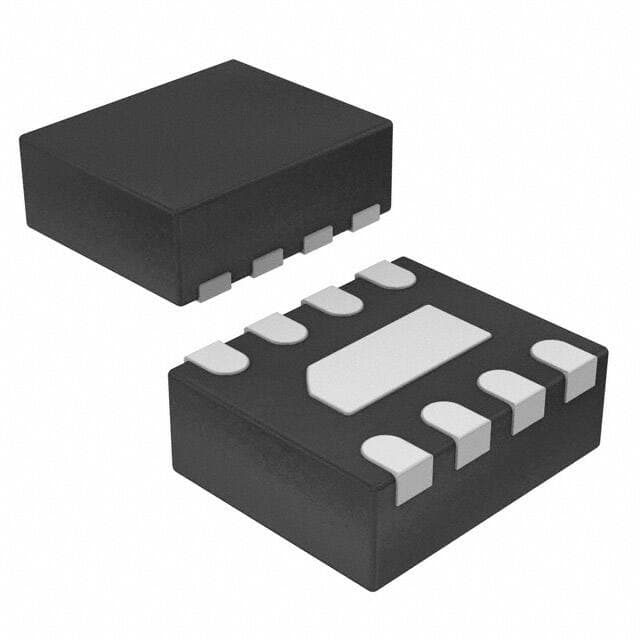

N-Channel 0.5mm PMIC SIP32413 8 Pin 8-UFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SIP32413DNP-T1-GE4 information

VISHAY SIP32413DNP-T1-GE4 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SIP32413DNP-T1-GE4.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-UFDFN Exposed Pad

Number of Pins
8

Weight
50.008559mg

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2017

JESD-609 Code
e4

Feature
Slew Rate Controlled

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Resistance
76mOhm

Terminal Finish
PALLADIUM GOLD OVER NICKEL

Max Power Dissipation
580mW

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Number of Outputs
2

Output Voltage
5V

Output Type
N-Channel

Max Output Current
2.4A

Input Voltage-Nom
5V

Interface
On/Off

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
High Side

Power Dissipation
580mW

Output Current
2A

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Turn On Delay Time
210 ?s

Switch Type
General Purpose

Nominal Input Voltage
5.5V

Turn-Off Delay Time
1 ?s

Ratio - Input:Output
1:1

Voltage - Load
1.1V~5.5V

Fault Protection
Reverse Current

Rds On (Typ)
62m ?

Height Seated (Max)
0.6mm

REACH SVHC
Unknown

Download datasheets and manufacturer documentation for VISHAY SIP32413DNP-T1-GE4.

Datasheets:

vishaysiliconix-sip32416dnpt1ge4-datasheets-6370.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

SIP32413DNP-T1-GE4 Overview

The LED driver's packaged as a Tape & Reel (TR).The 8-UFDFN Exposed Pad package contains it.Surface Mount is the mounting type of the LED driver.The switch type is General Purpose.To ensure reliable operation, the temperature should be set to -40°C~125°C TJ.There is a default setting of 2 for output.To operate, it needs a supply voltage of Not Required.The maximum output voltage is N-Channel volts.Slew Rate Controlled features are available on the lighting driver.This object belongs to the SIP32413 family.It contains 8 terminations.For operation, 8 pins are used.The LED driver has 1 functions.The maximum output current drops to 2.4A in order to meet the operation criteria.The lighting driver is mounted in the way of Surface Mount.There are 8 pins in total on this board.There is 76mOhm resistance on the LED driver.It is set to 2A in this case.It uses an analog IC, which is DUAL SWITCHING CONTROLLER.

SIP32413DNP-T1-GE4 Features

Resistance of 76mOhm

SIP32413DNP-T1-GE4 Applications

There are a lot of Vishay Siliconix
SIP32413DNP-T1-GE4 Power Switches ICs applications.

Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
