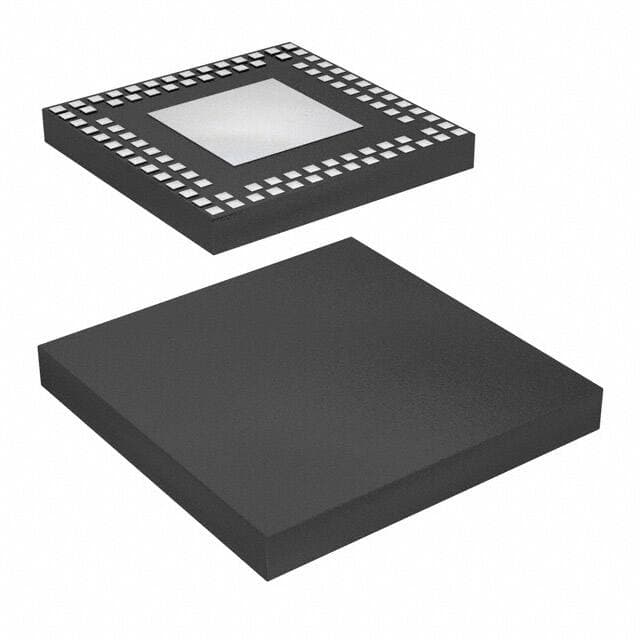

SKYWORKS SIM3C157-B-GM

Manufacturer No:

SIM3C157-B-GM

Manufacturer:

SKYWORKS

Package:

92-VFLGA Dual Rows, Exposed Pad

Description:

128KB 128K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller SiM3C1xx Series SIM3C1 92 Pin 80MHz 3V 92-VFLGA Dual Rows, Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SIM3C157-B-GM information

SKYWORKS SIM3C157-B-GM technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS SIM3C157-B-GM.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
92-VFLGA Dual Rows, Exposed Pad

Number of Pins
92

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
SiM3C1xx

Published
2001

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
92

Subcategory
Microcontrollers

Max Power Dissipation
570mW

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
NO LEAD

Supply Voltage
3V

Terminal Pitch
0.5mm

Frequency
80MHz

Base Part Number
SIM3C1

Qualification Status
Not Qualified

Supply Voltage-Min (Vsup)
1.8V

Number of Channels
10

Memory Size
128kB

Oscillator Type
Internal

Number of I/O
65

RAM Size
32K x 8

Voltage - Supply (Vcc/Vdd)
1.8V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M3

Peripherals
Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
128KB 128K x 8

Connectivity
EBI/EMI, I2C, IrDA, SmartCard, SPI, UART/USART

Bit Size
32

Data Converter
A/D 32x12b; D/A 2x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

Core Architecture
ARM

Number of Programmable I/O
75

Number of PWM Channels
2

Number of SPI Channels
3

Height
940μm

Download datasheets and manufacturer documentation for SKYWORKS SIM3C157-B-GM.

Datasheets:

siliconlabs-sim3c154bgm-datasheets-1292.pdf

siliconlabs-sim3c154bgm-datasheets-1293.pdf

siliconlabs-sim3c154bgm-datasheets-1294.pdf

SIM3C157-B-GM Overview

A 92-VFLGA Dual Rows, Exposed Pad package is included. In total, it has 65 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. SiM3C1xx series components belong to this electrical component. Its program memory size is 128KB 128K x 8. There is a ARM® Cortex®-M3 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 92 terminations in total. The part works on a 32-bit basis. An output voltage of 3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 128kB memory size belongs to the part. SIM3C1 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 80MHz, as long as it is operated at a low power consumption. On the chip, there are 92 pins that are accessible. It is built on a ARM core architecture. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need. A total of 2 PWM channels are used by the device.

SIM3C157-B-GM Features

92-VFLGA Dual Rows, Exposed Pad package
Mounting type of Surface Mount
Microcontrollers subcategory

SIM3C157-B-GM Applications

There are a lot of Silicon Labs
SIM3C157-B-GM Microcontroller applications.

Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
