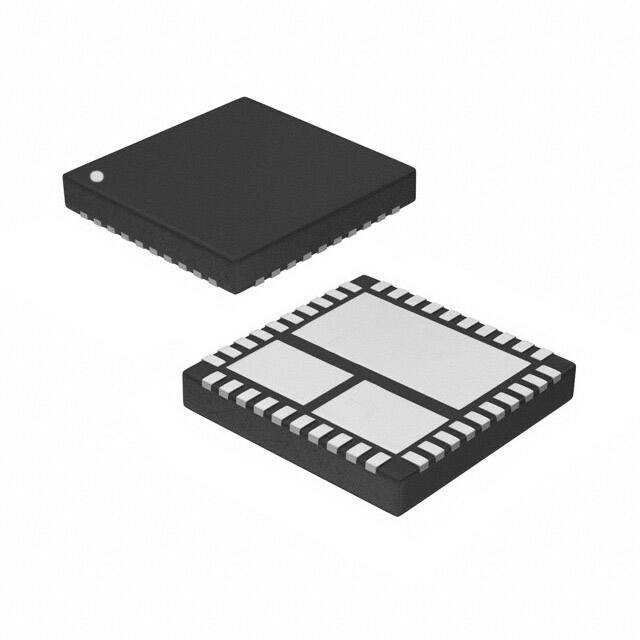

VISHAY SIC780ACD-T1-GE3
Manufacturer No:
SIC780ACD-T1-GE3
Manufacturer:
Package:
40-PowerWFQFN Module
Description:
Digi-Reel® 40-PowerWFQFN Module PWM 4.5V~5.5V Surface Mount -40°C~150°C TJ Synchronous Buck Converters Half Bridge Inductive 4.5V~18V
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SIC780ACD-T1-GE3 information
VISHAY SIC780ACD-T1-GE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SIC780ACD-T1-GE3.
- Type
- Parameter
- Factory Lead Time
- 17 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 40-PowerWFQFN Module
- Number of Pins
- 40
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Digi-Reel®
- Published
- 2014
- Feature
- Bootstrap Circuit, Diode Emulation, Status Flag
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Applications
- Synchronous Buck Converters
- Technology
- DrMOS
- Voltage - Supply
- 4.5V~5.5V
- Base Part Number
- SIC780A
- Number of Outputs
- 2
- Max Output Current
- 50A
- Interface
- PWM
- Analog IC - Other Type
- SWITCHING CONTROLLER
- Output Configuration
- Half Bridge
- Output Current
- 50A
- Turn On Delay Time
- 10 ns
- Output Current per Channel
- 50A
- Voltage - Load
- 4.5V~18V
- Fault Protection
- Over Temperature, Shoot-Through, UVLO
- Load Type
- Inductive
- Length
- 6mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for VISHAY SIC780ACD-T1-GE3.
RohsStatement:
SIC780ACD-T1-GE3 Overview
In this package, Digi-Reel® is used.In order to save costs, H bridge is included in the 40-PowerWFQFN Module package.Bridge driver is possible to ensure improved reliabilbridge drivery by varying the supply voltage of 4.5V~5.5V.H bridge circuit is mounted in the way of Surface Mount.Motor driver H bridge works normally at -40°C~150°C TJ's operating temperature.Synchronous Buck Converters is pretty useful in a variety of applications.On PCBs, Surface Mount mounts H gate.Among full bridges specific characteristics is Bootstrap Circuit, Diode Emulation, Status Flag.Signal interfaces use 40 pins as pronged contacts.Its base H bridge ic number, SIC780A, can be used to locate other H bridge ics that are related.As its analog IC type, H bridge circuit has been incorporated with SWITCHING CONTROLLER.The maximum load current a power supply can provide at a specified ambient temperature is 50A.Currently, 50A current flows through the output and power supply pins.It is equipped with a 2 output.
SIC780ACD-T1-GE3 Features
Available in 40-PowerWFQFN Module Package / Case
Operating Temperature at the range of Surface Mount
Interface IC Type : SIC780A
SIC780ACD-T1-GE3 Applications
There are a lot of Vishay Siliconix
SIC780ACD-T1-GE3 Full Bridge Drivers, Half-Bridge Drivers applications.
- High-Performance Gaming Motherboards
- Compact Blade Servers
- DC-DC Converters
- Desktop Computers
- V-Core
- Non-V-Core
- Workstations
- High-Current DC-DC Point-of-Load Converters
- Networking Microprocessor Voltage Regulators
- Telecom Microprocessor
