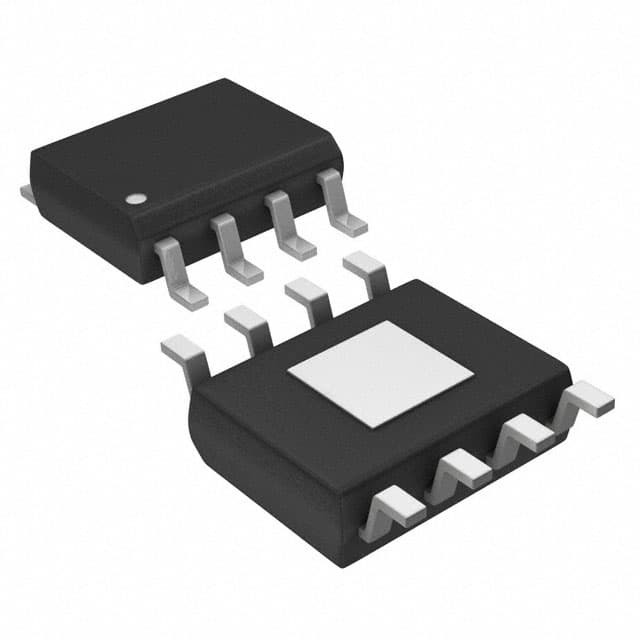

SANKEN SI-8005Q

Manufacturer No:

SI-8005Q

Manufacturer:

SANKEN

Package:

8-SOIC (0.173, 4.40mm Width) Exposed Pad

Description:

8 Terminals 4.75V 8-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 500kHz Tape & Reel (TR) 3.5A 8-SOIC (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SI-8005Q information

SANKEN SI-8005Q technical specifications, attributes, parameters and parts with similar specifications to SANKEN SI-8005Q.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.173, 4.40mm Width) Exposed Pad

Surface Mount
YES

Number of Pins
8

Operating Temperature
-30°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
28V

Output Voltage
24V

Output Type
Adjustable

Voltage - Input (Min)
4.75V

Input Voltage-Nom
12V

Output Configuration
Positive

Current - Output
3.5A

Voltage - Output (Min/Fixed)
0.5V

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
500kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Length
5.2mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SANKEN SI-8005Q.

Datasheets:

sanken-si8005qtl-datasheets-2981.pdf

SI-8005Q Overview

A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In this voltage regulator, 8 terminations are present. A SWITCHING REGULATOR analog IC is used in this voltage regulator 12v, which is the type of analog IC that this voltage regulator 12v is equipped with. In order to save space, this voltage regulator is packaged in the 8-SOIC (0.173, 4.40mm Width) Exposed Pad package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -30°C~85°C TA is essential when operating. A DC-DC switching regulator such as this one switches at 500kHz. Voltage regulators like this one can operate at least with 4.75V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.5V. This voltage regulator 12v features maximum design flexibility thanks to its 3.5A output current. As far as the voltage input is concerned, DC DC switching regulator can accept up to 28V. Due to its NOT SPECIFIED high peak reflow temperature, this voltage regulator 12v is virtually indestructible. An input voltage of 12V is required to meet the requirements of the switching regulator operation. The voltage DC DC switching regulator can provide is up to 24V volts. During switching regulator operation, 8 pins are used.

SI-8005Q Features

1 outputs
Peak reflow temperature (Cel) of NOT SPECIFIED
8 pins

SI-8005Q Applications

There are a lot of Sanken
SI-8005Q Voltage Regulators applications.

Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
Machining centers
