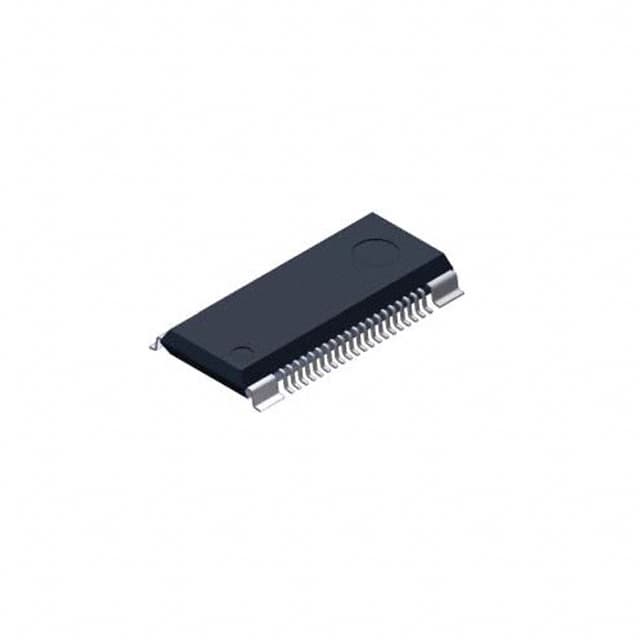

SANKEN SI-7321M

Manufacturer No:

SI-7321M

Manufacturer:

SANKEN

Package:

44-SSOP (0.291, 7.40mm Width) 4 Heat Tabs

Description:

7.5mm mm Motor Drivers 44 5V V 18.6mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SI-7321M information

SANKEN SI-7321M technical specifications, attributes, parameters and parts with similar specifications to SANKEN SI-7321M.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
44-SSOP (0.291, 7.40mm Width) 4 Heat Tabs

Operating Temperature
-20°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
44

Applications
General Purpose

Technology
Power MOSFET

Voltage - Supply
3V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G44

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
3.3V

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Low Side (4)

Current - Output
1.5A

Logic Function
AND

Voltage - Load
10V~44V

Motor Type - AC, DC
Brushed DC

Motor Type - Stepper
Unipolar

Step Resolution
1, 1/2, 1/4, 1/8, 1/16

Length
18.6mm

Height Seated (Max)
2.45mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SANKEN SI-7321M.

Datasheets:

sanken-si7321m-datasheets-5684.pdf

SI-7321M Overview

The design includes a package of type [0].Drivers controllers is packaged wDrivers controllersh a 44-SSOP (0.291, 7.40mm Width) 4 Heat Tabs case.In most cases, it is recommended to mount the part at Surface Mount.I believe it would be suitable for the component connected to General Purpose.A device with a voltage range of 3V~5.5V volts is available.The operating temperature ranges from -20°C~150°C TJto -20°C~150°C TJ.In this case, the motor type is Brushed DC.The part supports 44terminations.At a rate of [0], voltage can be applied to the load.Drivers controllers is important to note that this amplifier should be operated at the 5Vsetting.Surface Mountis the recommended mounting method.Ensure that the part output current remains at 1.5A.The device utilizes the IC STEPPER MOTOR CONTROLLERwhich is an analog IC.

SI-7321M Features

Applications : General Purpose
Load voltage across the chip 10V~44V
