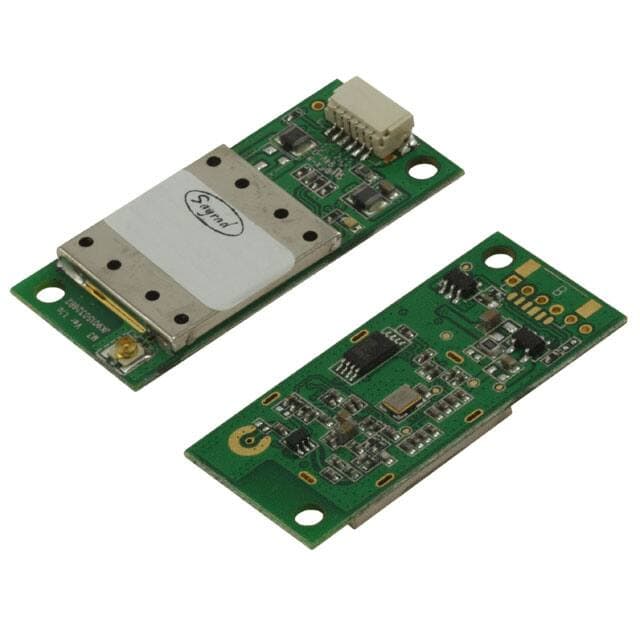

Sagrad Inc. SG901-1059-5C

Manufacturer No:

SG901-1059-5C

Manufacturer:

Sagrad Inc.

Package:

Module

Description:

2.4GHz WiFi 0°C~50°C 5V USB Bulk Antenna Not Included, I-PEX 150Mbps 19dBm 802.11b/g/n -84dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG901-1059-5C information

Sagrad Inc. SG901-1059-5C technical specifications, attributes, parameters and parts with similar specifications to Sagrad Inc. SG901-1059-5C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Module

Operating Temperature
0°C~50°C

Packaging
Bulk

Published
2009

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
50°C

Min Operating Temperature
0°C

Voltage - Supply
5V

Frequency
2.4GHz

Operating Supply Voltage
5.2V

Interface
USB

Data Rate
150Mbps

Protocol
802.11b/g/n

Power - Output
19dBm

RF Family/Standard
WiFi

Antenna Type
Antenna Not Included, I-PEX

Sensitivity
-84dBm

Serial Interfaces
USB

Current - Receiving
110mA Max

Current - Transmitting
110mA Max

Modulation
BPSK, CCK, OFDM, QPSK

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sagrad Inc. SG901-1059-5C.

Datasheets:

sagradinc-sg90110593h-datasheets-3134.pdf

SG901-1059-5C Overview

RF Transceiver' mounting is done according to the Surface Mount method.There is an optimized performance in this RF Transceiver module because it utilizes the Bulk package.Operating at 0°C~50°C is the recommended temperature for Transceiver's operation.RF Transceivers with 5V voltage capabilities can be used.2.4GHz is the frequency of the RF Transceiver Module.In many applications, this Transceiver is mounted with a Surface Mount bus.

SG901-1059-5C Features

Surface Mount
Bulk package
5V volts

SG901-1059-5C Applications

There are a lot of Sagrad Inc.
SG901-1059-5C RF Transceiver Modules applications.

Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
