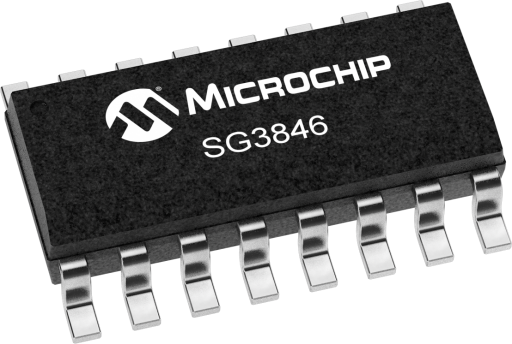

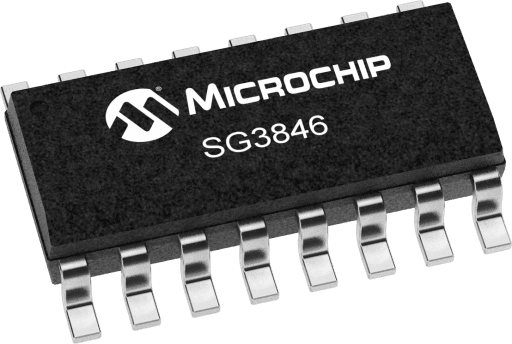

Microchip SG3846DW
Microchip SG3846DWMicrochip SG3846DW

Microchip SG3846DW

Manufacturer No:

SG3846DW

Manufacturer:

Microchip

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

PWM Controller, Current Mode PWM, Dual Sink/SourceOutputs, 8-40V -55\u0026#176;C to 125\u0026#176;C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG3846DW information

Microchip SG3846DW technical specifications, attributes, parameters and parts with similar specifications to Microchip SG3846DW.

  • Type
  • Parameter
  • Regulator Type
  • HI Rel Switching Regulators
  • Configuration
  • Current Mode PWMs
  • Supported Topology
  • Push-pull, Single ended,Buck
  • Supported Output
  • 2
  • Minimum Input Voltage (V)
  • 8
  • Maximum Input Voltage (V)
  • 40
  • Output Current (mA) Max
  • 100
  • Maximum Frequency (kHz)
  • 500
  • Operating Temperature Range (°C)
  • 0 to 70
  • Vref (V)
  • 5.1
  • Duty Cycle Min (%)
  • 0
  • Duty Cycle Max (%)
  • 0
  • UVLO
  • Yes
  • Current Limit
  • Yes
  • Output Current
  • 0
  • Quiescent Current (mA) typ
  • 17
  • Switch current (A) typ
  • 0
  • SHUTDOWN Current (µA) (Typ)
  • 0
  • # of Outputs
  • 0
  • Vfb V (volt)
  • 0

Download datasheets and manufacturer documentation for Microchip SG3846DW.

Application Notes:

Data Sheets:

Certifications:

The SG1846 family of control ICs provides the required features to implement Fixed Frequency, Current mode control schemes while maintaining a minimum external parts count. The advanced performance of this technique can be measured in improved line regulation, enhanced load response characteristics, and a simpler, easier-to-design control loop. Topological advantages include, inherent pulse-by-pulse current limiting capability, automatic symmetry correction for push-pull converters, and the ability to parallel “power modules” while maintaining equal current sharing.
Protection circuitry includes built-in under-voltage lockout and programmable current limit in addition to soft start capability. A shutdown function is also available which can initiate either a complete shutdown with automatic restart, or latch the supply off.
Other features include fully latched operation, double-pulse suppression, dead-time adjust capability, and a ±1% trimmed bandgap reference.

    • Automatic Feed-forward Compensation
    • Programmable Pulse by Pulse Current Limiting
    • Automatic Symmetry Correction in Push-pull Configuration
    • Enhanced Load Response Characteristics
    • Parallel Operation Capability for Modular Power Systems
    • Differential Current Sense Amplifier with Wide Common-mode Range - Double Pulse Suppression
    • 200mA Totem-pole Outputs
    • ± 1% Bandgap Reference
    • Under-voltage Lockout
    • Soft-start and Shutdown Capability
    • 500kHz Operation
