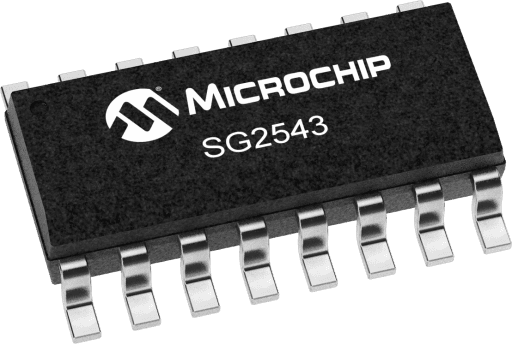

Microchip SG2543N

Manufacturer No:

SG2543N

Manufacturer:

Microchip

Package:

16-DIP

Description:

Precision Output Supervisory Circuit Voltage to 1% Accuracy 25\u0026#176;C to 85\u0026#176;C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG2543N information

Microchip SG2543N technical specifications, attributes, parameters and parts with similar specifications to Microchip SG2543N.

Type
Parameter

Driver Type
Supervisor

Min Operating Voltage (V)
999999

Max Operating Voltage (V)
999999

Nominal Reset Voltage Min
999999

Nominal Reset Voltage Max
999999

Watchdog Timer
No

Manual Reset
No

Power Fail
No

Min Operating Ambient Temperature (°C)
999999

Max Operating Ambient Temperature (°C)
999999

Download datasheets and manufacturer documentation for Microchip SG2543N.

Certifications:

8a0ab4e70172723ce5e84832ab307426.pdf

294167e05968eb9944413817c65e3e85.pdf

Data Sheets:

397ec6f15095a9fb560eab5381deccfe.pdf

This monolithic integrated circuit contains all the functions necessary to monitor and control the output of a sophisticated power supply system. Over-voltage (O.V.) sensing with provision to trigger an external SCR “crowbar” shutdown; an under-voltage (U.V.) circuit which can be used to monitor either the output or to sample the input line voltage; and a third op amp/comparator usable for current sensing (C.L.) are all included in this IC, together with an independent, accurate reference generator. Both over and under-voltage sensing circuits can be externally programmed for minimum time duration of fault before triggering. All functions contain open collector outputs which can be used independently or wire-ORed together; and although the SCR trigger is directly connected only to the over-voltage sensing circuit, it may be optionally activated by any of the other outputs, or from an external signal. The O.V. circuit also includes an optional latch and external reset capability. The current sense circuit may be used with external compensation as a linear amplifier or as a high gain comparator. Although nominally set for zero input offset, a fixed threshold may be added with an external resistor. Instead of current limiting, this circuit may also be used as an additional voltage monitor. The reference generator circuit is internally trimmed to eliminate the need for external potentiometers and the entire circuit may be powered directly from either the output being monitored or from a separate bias voltage.

Over-Voltage, Under-Voltage, and Current Sensing Circuits all included.
Reference Voltage Trimmed to 1% Accuracy.
SCR "Crowbar" Drive of 300mA.
Programmable Time Delays.
Open-Collector Outputs and Remote Activation Capability.
Total Standby Current less than 10mA
