Microchip SG2524BDW
Microchip SG2524BDW

Microchip SG2524BDW

Manufacturer No:

SG2524BDW

Manufacturer:

Microchip

Package:

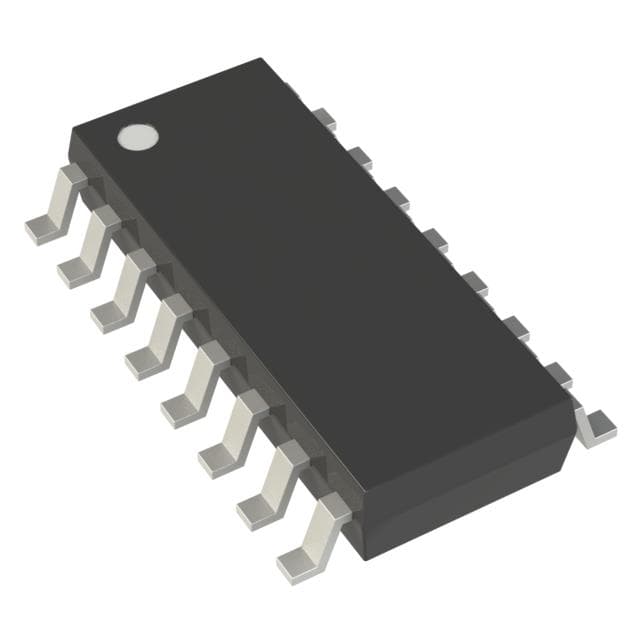

16-SOIC (0.154, 3.90mm Width)

Description:

PWM Controller Voltage Mode +/-1% Ref - pulse width modulator –25 \u0026#176;C to 85 \u0026#176;C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG2524BDW information

Microchip SG2524BDW technical specifications, attributes, parameters and parts with similar specifications to Microchip SG2524BDW.

  • Type
  • Parameter
  • Regulator Type
  • HI Rel Switching Regulators
  • Configuration
  • Voltage Mode PWMs
  • Supported Topology
  • Push-pull, Single ended
  • Supported Output
  • 2
  • Minimum Input Voltage (V)
  • 7
  • Maximum Input Voltage (V)
  • 40
  • Output Current (mA) Max
  • 100
  • Maximum Frequency (kHz)
  • 600
  • Operating Temperature Range (°C)
  • -25 to 85
  • Vref (V)
  • 5
  • Duty Cycle Min (%)
  • 0
  • Duty Cycle Max (%)
  • 49
  • UVLO
  • Yes
  • Current Limit
  • Yes
  • Output Current
  • 0
  • Quiescent Current (mA) typ
  • 5
  • Switch current (A) typ
  • 0
  • SHUTDOWN Current (µA) (Typ)
  • 0
  • # of Outputs
  • 0
  • Vfb V (volt)
  • 0

Download datasheets and manufacturer documentation for Microchip SG2524BDW.

Certifications:

Application Notes:

Data Sheets:

The SG1524B is a pulse width modulator for switching power supplies that features improved performance over industry standards like the SG1524. A direct pin-for-pin replacement for the earlier device, it combines advanced processing techniques and circuit design to provide improved reference accuracy, and extended common mode range at the error amplifier and current limit inputs. A DC-coupled flip-flop eliminates triggering and glitch problems, and a PWM data latch prevents edge oscillations. The circuit incorporates true digital shutdown for high speed response, while an under voltage lockout circuit prevents spurious outputs when the supply voltage is too low for stable operation. Full double-pulse suppression logic insures alternating output pulses when the Shutdown pin is used for pulse-by-pulse current limiting. The SG1524B is specified for operation over the full military ambient temperature range of -55°C to 125°C. The SG2524B is characterized for the industrial range of -25°C to 85°C, and the SG3524B is designed for the commercial range of 0°C to 70°C.

  • 7V to 40V Operation
  • 5V Reference Trimmed to 1%
  • 100Hz to 400kHz Oscillator Range
  • Excellent External Sync Capability
  • Dual 100 mA Output Transistors
  • Wide Current Limit Common Mode Range DC-Coupled Toggle Flip-flop
  • PWM Data Latch -Undervoltage Lockout
  • Full Double-pulse Suppression Logic
  • Full Double-pulse Suppression Logic
  • 60V Output Collectors
