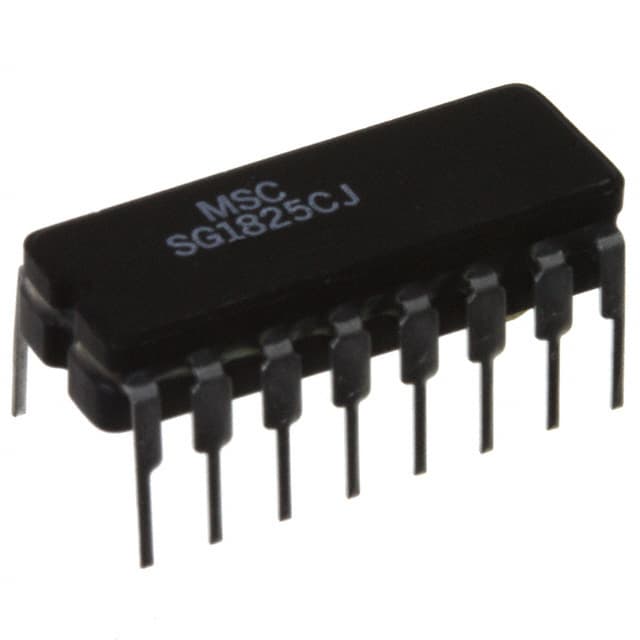

Microchip SG1825CJ
Manufacturer No:
SG1825CJ
Manufacturer:
Package:
DIP
Description:
Current Mode PWMs Isolated Switching Regulators - Current Mode PWM, 1.5Mhz, 5962-8768101EA
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SG1825CJ Information
Microchip SG1825CJ technical specifications, attributes, parameters and parts with similar specifications to Microchip SG1825CJ.
- Type
- Parameter
- Regulator Type
- HI Rel Switching Regulators
- Configuration
- Current Mode PWMs
- Supported Topology
- Push-pull, Single ended
- Supported Output
- 2
- Minimum Input Voltage (V)
- 10
- Maximum Input Voltage (V)
- 30
- Output Current (mA) Max
- 500
- Maximum Frequency (kHz)
- 1500
- Operating Temperature Range (°C)
- -55 to 125
- Vref (V)
- 5.1
- Type
- Parameter
- Duty Cycle Min (%)
- 0
- Duty Cycle Max (%)
- 85
- UVLO
- Yes
- Current Limit
- Yes
- Quiescent Current (mA) typ
- 0
Download datasheets and manufacturer documentation for Microchip SG1825CJ.
Certifications:
Data Sheets:
Application Notes:
The SG1825C is a high-performance pulse width modulator optimized for high frequency current-mode power supplies. Included in the controller are a precision voltage reference, micro power start-up circuitry, soft-start, high frequency oscillator, wideband error amplifier, fast current limit comparator, full double-pulse suppression logic, and dual totem pole output drivers. Innovative circuit design and an advanced linear Schottky process result in very short propagation
delays through the current limit comparator, logic, and output drivers. This device can be used to implement either current mode or voltage mode switching power supplies. It also is useful as a series-resonant controller to frequencies beyond 1MHz. The SG1825C is specified for operation over the full military ambient temperature range of -55°C to 125°C.
Microchip Ordering Part Standard Microcircuit Drawing (SMD)
SG1825CJ-DESC Cross Reference 5962-8768101EA
SG1825CJ-DESC Cross Reference 5962-8768101EX
- Improved Reference Initial Tolerance (±1% max.)
- Improved Oscillator Initial Accuracy (±3% typ.)
- Improved Startup Current (500µA typ.)- Propagation Delay to Outputs (50ns typ.)
- 10V to 30V Operation
- 5.1V Reference Trimmed to ±1%
- 2MHz Oscillator Capability
- 1.5A Peak Totem-Pole Drivers
- U.V. Lockout with Hysteresis
- No Output Driver “FLOAT”
- Programmable Softstart
- Double-Pulse Suppression Logic
- Wideband Low-Impedance Error Amplifier
- Current-Mode or Voltage-Mode Control
