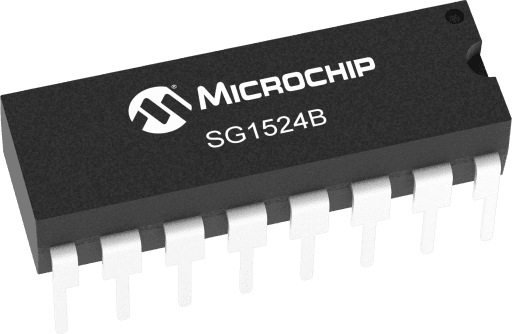

Microchip SG1524BJ
Manufacturer No:
SG1524BJ
Manufacturer:
Microchip
Package:
16-CDIP (0.300, 7.62mm)
Description:
PWM Controller Voltage Mode +/-1% Ref - pulse width modulator 55 \u0026#176;C to 125 \u0026#176;C, 5962-8764501EA
Quantity:
In Stock :1475
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SG1524BJ Information
Microchip SG1524BJ technical specifications, attributes, parameters and parts with similar specifications to Microchip SG1524BJ.
- Type
- Parameter
- Regulator Type
- HI Rel Switching Regulators
- Configuration
- Voltage Mode PWMs
- Supported Topology
- Push-pull, Single ended
- Supported Output
- 2
- Minimum Input Voltage (V)
- 7
- Maximum Input Voltage (V)
- 40
- Output Current (mA) Max
- 100
- Maximum Frequency (kHz)
- 600
- Operating Temperature Range (°C)
- -55 to 125
- Vref (V)
- 5
- Type
- Parameter
- Duty Cycle Min (%)
- 0
- Duty Cycle Max (%)
- 49
- UVLO
- Yes
- Current Limit
- Yes
- Output Current
- 0
- Quiescent Current (mA) typ
- 5
- Switch current (A) typ
- 0
- SHUTDOWN Current (µA) (Typ)
- 0
- # of Outputs
- 0
- Vfb V (volt)
- 0
Download datasheets and manufacturer documentation for Microchip SG1524BJ.
Certifications:
Application Notes:
Data Sheets:
The SG1524B is a pulse width modulator for switching power supplies that features improved performance over industry standards like the SG1524. A direct pin-for-pin replacement for the earlier device, it combines advanced processing techniques and circuit design to provide improved reference accuracy, and extended common mode range at the error amplifier and current limit inputs. A DC-coupled flip-flop eliminates triggering and glitch problems, and a PWM data latch prevents edge oscillations. The circuit incorporates true digital shutdown for high speed response, while an under voltage lockout circuit prevents spurious outputs when the supply voltage is too low for stable operation. Full double-pulse suppression logic insures alternating output pulses when the Shutdown pin is used for pulse-by-pulse current limiting. The SG1524B is specified for operation over the full military ambient temperature range of -55°C to 125°C. The SG2524B is characterized for the industrial range of -25°C to 85°C, and the SG3524B is designed for the commercial range of 0°C to 70°C.
5962-8764501EA
SG1524BJ-DESC
- 7V to 40V Operation
- 5V Reference Trimmed to 1%
- 100Hz to 400kHz Oscillator Range
- Excellent External Sync Capability
- Dual 100 mA Output Transistors
- Wide Current Limit Common Mode Range DC-Coupled Toggle Flip-flop
- PWM Data Latch -Undervoltage Lockout
- Full Double-pulse Suppression Logic
- Full Double-pulse Suppression Logic
- 60V Output Collectors
