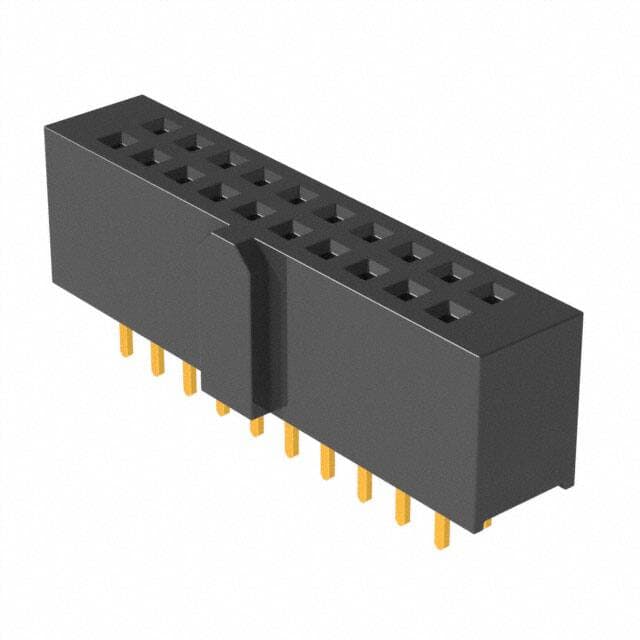

Sullins Connector Solutions SFH11-PBPC-D10-ST-BK
Sullins Connector Solutions SFH11-PBPC-D10-ST-BK

Sullins Connector Solutions SFH11-PBPC-D10-ST-BK

Manufacturer No:

SFH11-PBPC-D10-ST-BK

Manufacturer:

Sullins Connector Solutions

Package:

Description:

Description: Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SFH11-PBPC-D10-ST-BK information

Sullins Connector Solutions SFH11-PBPC-D10-ST-BK technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions SFH11-PBPC-D10-ST-BK.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Samacsys Manufacturer
  • Sullins
  • Body Breadth
  • 0.276 inch
  • Body Depth
  • 0.335 inch
  • Body Length
  • 1.2 inch
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • GOLD
  • Contact Gender
  • FEMALE
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 20 mΩ
  • Contact Style
  • SQ PIN-SKT
  • Dielectric Withstanding Voltage
  • 500VAC V
  • Filter Feature
  • NO
  • Insulation Resistance
  • 1000000000 Ω
  • Insulator Color
  • BLACK
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • JESD-609 Code
  • e4
  • Mating Contact Row Spacing
  • 0.1 inch
  • Mixed Contacts
  • NO
  • Mounting Option 1
  • LOCKING
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 2
  • Operating Temperature-Max
  • 105 °C
  • Operating Temperature-Min
  • -40 °C
  • PCB Contact Pattern
  • RECTANGULAR
  • PCB Contact Row Spacing
  • 2.54 mm
  • Plating Thickness
  • FLASH inch
  • Polarization Key
  • POLARIZED HOUSING
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.126 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 20

Download datasheets and manufacturer documentation for Sullins Connector Solutions SFH11-PBPC-D10-ST-BK.

Datasheets:

Environmental Information:

SFH11-PBPC-D10-ST-BK Overview


This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the SFH11 Series.In many ways, Polarizing Key makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.

SFH11-PBPC-D10-ST-BK Features


SFH11 series


SFH11-PBPC-D10-ST-BK Applications


There are a lot of Sullins Connector Solutions
SFH11-PBPC-D10-ST-BK Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
