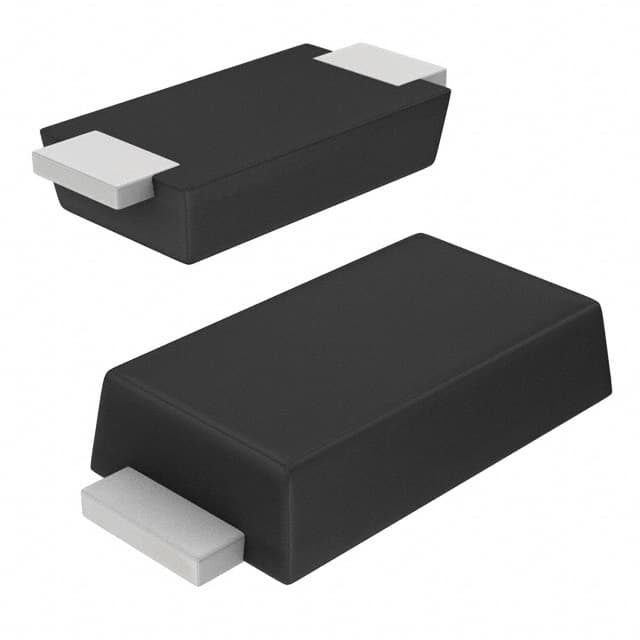

VISHAY SE20AFJHM3/6A

Manufacturer No:

SE20AFJHM3/6A

Manufacturer:

VISHAY

Package:

DO-221AC, SMA Flat Leads

Description:

Standard Diode Rectifier Standard Recovery >500ns, > 200mA (Io) 1.1V @ 2A -55°C~175°C 5?A @ 600V 2-Termination Tape & Reel (TR) DO-221AC, SMA Flat Leads Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SE20AFJHM3/6A information

VISHAY SE20AFJHM3/6A technical specifications, attributes, parameters and parts with similar specifications to VISHAY SE20AFJHM3/6A.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
DO-221AC, SMA Flat Leads

Number of Pins
2

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2016

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

Additional Feature
LOW LEAKAGE CURRENT

HTS Code
8541.10.00.80

Terminal Position
DUAL

Base Part Number
SE20AFJ

Reference Standard
AEC-Q101

Number of Elements
1

Element Configuration
Single

Speed
Standard Recovery >500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr
5?A @ 600V

Voltage - Forward (Vf) (Max) @ If
1.1V @ 2A

Forward Current
2A

Operating Temperature - Junction
-55°C~175°C

Max Surge Current
35A

Output Current-Max
1.3A

Application
GENERAL PURPOSE

Current - Average Rectified (Io)
2A DC

Max Reverse Voltage (DC)
600V

Average Rectified Current
2A

Number of Phases
1

Reverse Recovery Time
1.2 ?s

Peak Reverse Current
5?A

Max Repetitive Reverse Voltage (Vrrm)
600V

Capacitance @ Vr, F
12pF @ 4V 1MHz

Peak Non-Repetitive Surge Current
35A

Reverse Voltage
600V

Recovery Time
1.2 ?s

Height
1mm

Length
4.35mm

Width
2.7mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY SE20AFJHM3/6A.

Datasheets:

vishaysemiconductordiodesdivision-se20afdm36a-datasheets-7784.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

SE20AFJHM3/6A Overview

A reverse voltage of 600V is reasonable.This device has an average rectified current of 2A volts.Forward current is allowed to reach a value of zero.Surge currents can be used up to 35A.The maximum output current is 1.3A.Datasheets indicate that the peak reverse is 5?A.

SE20AFJHM3/6A Features

an average rectified current of 2A volts
1.3A is the maximum value
the peak reverse is 5?A

SE20AFJHM3/6A Applications

There are a lot of Vishay Semiconductor Diodes Division
SE20AFJHM3/6A applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
