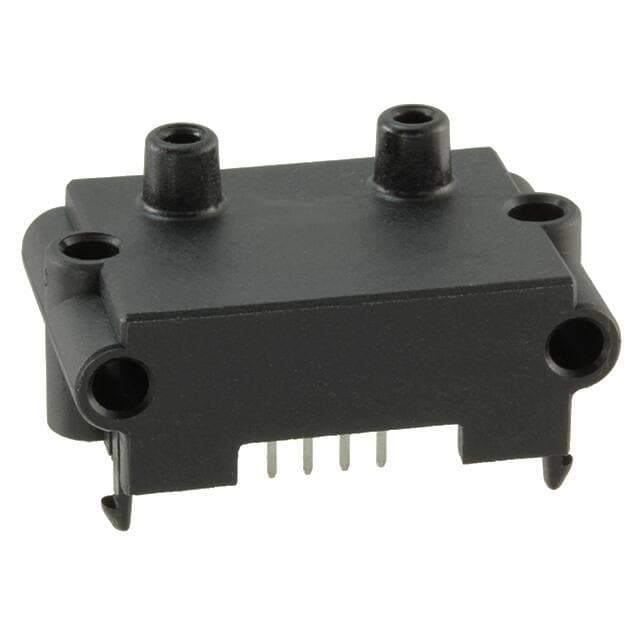

Sensirion AG SDP606
Sensirion AG SDP606

Sensirion AG SDP606

Manufacturer No:

SDP606

Manufacturer:

Sensirion AG

Package:

4-SIP Module

Description:

SDP600 Series Differential Pressure Sensor I2C -20°C~80°C ±0.07PSI (±0.5kPa) No Port ±3% 16b 2.7V~3.3V Temperature Compensated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SDP606 information

Sensirion AG SDP606 technical specifications, attributes, parameters and parts with similar specifications to Sensirion AG SDP606.

  • Type
  • Parameter
  • Package / Case
  • 4-SIP Module
  • Surface Mount
  • NO
  • Mounting Feature
  • THROUGH HOLE MOUNT
  • Operating Temperature
  • -20°C~80°C
  • Series
  • SDP600
  • Published
  • 2012
  • Feature
  • Temperature Compensated
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • PC Pin
  • Applications
  • Board Mount
  • Voltage - Rated
  • 3V
  • Voltage - Rated DC
  • 3V
  • Voltage - Supply
  • 2.7V~3.3V
  • Reach Compliance Code
  • unknown
  • Output
  • 16b
  • Termination Style
  • PC Pin
  • Body Length or Diameter
  • 29mm
  • Body Breadth
  • 18 mm
  • Output Type
  • I2C
  • Number of Bits
  • 16
  • Accuracy
  • ±3%
  • Response Time
  • 70000 μs
  • Operating Pressure
  • ±0.07PSI (±0.5kPa)
  • Port Style
  • No Port
  • Maximum Pressure
  • ±72.52PSI (±500kPa)
  • Sensors/Transducers Type
  • PRESSURE SENSOR,CAPACITIVE
  • Housing
  • PBT
  • Max Pressure
  • 72.52 PSI
  • Pressure Range-Max
  • 0.07 Psi
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Sensirion AG SDP606.

Datasheets:

SDP606 Overview


There is a transducer included in the package 4-SIP Module for your convenience. It is recommended that the transducer temperature be set to -20°C~80°C in order to ensure reliable performance. In general, the transducers are capable of operating at a supply voltage of 2.7V~3.3V. It is possible to set a maximum pressure range of 0.07 Psi with this transducer. The DC voltage should be 3V so the transducers can run continuously at the rated ambient temperature.

SDP606 Features


Moisture Sensitivity Level: Not Applicable
Package / Case: 4-SIP Module
Operating Temperature: -20°C~80°C
SDP600 series
Operating Pressure: ±0.07PSI (±0.5kPa)


SDP606 Applications


There are a lot of Sensirion AG
SDP606 Transducers applications.


  • Vertical velocity monitoring
  • Leisure, Sports, and Fitness Activity Identification
  • Weather Forecasting
  • Hydrogen Storage
  • Refrigerant pressure monitoring in HVAC/R systems
  • Dry air system pressure, process controls and automation
  • Dry air system monitoring
  • Hydraulic, brake, and engine oil fluid pressure monitoring
  • Air brake pressure monitoring
  • Vertical velocity indication (e.g. rise/sink speed)
