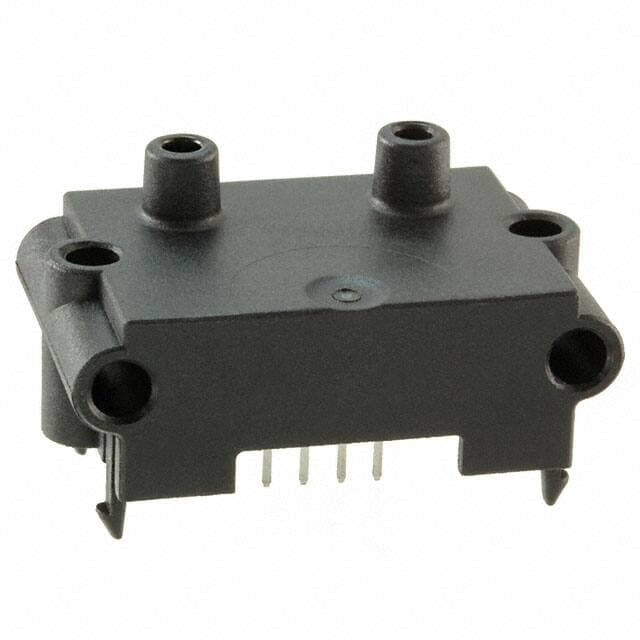

Sensirion AG SDP601

Manufacturer No:

SDP601

Manufacturer:

Sensirion AG

Package:

3-SIP Module

Description:

SDP600 Series Differential Pressure Sensor I2C -20°C~80°C ± 0.072PSI (±0.5kPa) No Port ±3% 16 b 3V~3.6V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SDP601 information

Sensirion AG SDP601 technical specifications, attributes, parameters and parts with similar specifications to Sensirion AG SDP601.

Type
Parameter

Package / Case
3-SIP Module

Supplier Device Package
3-SIP

Operating Temperature
-20°C~80°C

Series
SDP600

Published
2012

Feature
Temperature Compensated

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
PC Pin

Max Operating Temperature
80°C

Min Operating Temperature
-20°C

Applications
Board Mount

Voltage - Rated
3.3V

Voltage - Rated DC
3.3V

Voltage - Supply
3V~3.6V

Output
16 b

Termination Style
PC Pin

Output Type
I2C

Accuracy
±3%

Operating Pressure
± 0.072PSI (±0.5kPa)

Pressure Type
Differential

Port Style
No Port

Maximum Pressure
±14.5PSI (±100kPa)

Max Pressure
14.5 PSI

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sensirion AG SDP601.

Datasheets:

sensirionag-sdp600500pa-datasheets-3400.pdf

sensirion-sdp601-datasheets-7043.pdf

SDP601 Overview

This transducer is included in the package 3-SIP Module. Ensure reliable performance by setting the transducers' temperature to -20°C~80°C. It is possible to use the transducers with a supply voltage of 3V~3.6V without any problems. Transducers can operate at temperatures as high as 80°C. It is not possible for the transducers to operate below -20°C. Transducers should receive a DC voltage of 3.3V in order to maintain the rated ambient temperature continuously.

SDP601 Features

Moisture Sensitivity Level: Not Applicable
Package / Case: 3-SIP Module
Operating Temperature: -20°C~80°C
SDP600 series
Operating Pressure: ± 0.072PSI (±0.5kPa)

SDP601 Applications

There are a lot of Sensirion AG
SDP601 Transducers applications.

Altitude Control of Drones and Flying Toys
Mobile Phones
Virtual Reality and Gaming Equipment
Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
Vertical velocity monitoring
Leisure, Sports, and Fitness Activity Identification
Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
