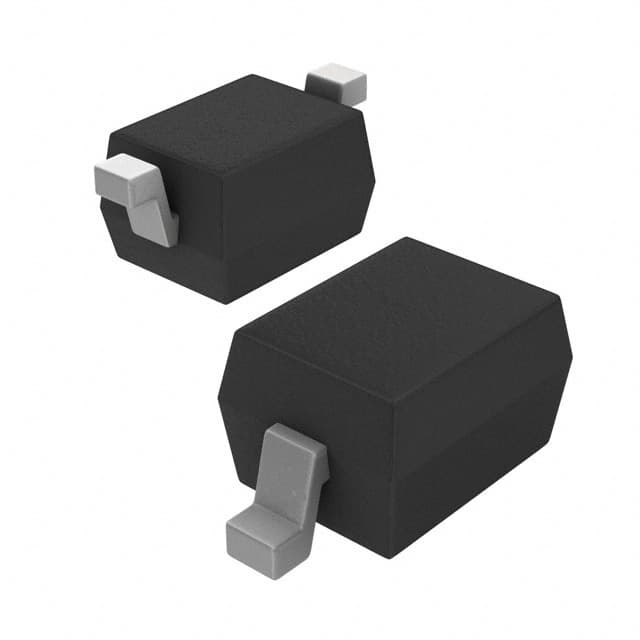

VISHAY SD103AWS-E3-08
Manufacturer No:
SD103AWS-E3-08
Manufacturer:
Package:
SC-76, SOD-323
Description:
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 600mV @ 200mA -55°C~125°C 5?A @ 30V 2-Termination Tape & Reel (TR) SC-76, SOD-323 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SD103AWS-E3-08 information
VISHAY SD103AWS-E3-08 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SD103AWS-E3-08.
| Type | Parameter |
|---|---|
| Factory Lead Time | 12 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Number of Pins | 2 |
| Weight | 4.309128mg |
| Diode Element Material | SILICON |
| Packaging | Tape & Reel (TR) |
| Published | 2013 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Terminal Finish | Matte Tin (Sn) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| HTS Code | 8541.10.00.70 |
| Subcategory | Rectifier Diodes |
| Max Power Dissipation | 200mW |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Type | Parameter |
|---|---|
| Base Part Number | SD103A |
| Pin Count | 2 |
| Number of Elements | 1 |
| Element Configuration | Single |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Diode Type | Schottky |
| Current - Reverse Leakage @ Vr | 5?A @ 30V |
| Voltage - Forward (Vf) (Max) @ If | 600mV @ 200mA |
| Forward Current | 350mA |
| Max Reverse Leakage Current | 5?A |
| Operating Temperature - Junction | -55°C~125°C |
| Max Surge Current | 2A |
| Output Current-Max | 0.35A |
| Current - Average Rectified (Io) | 350mA DC |
| Forward Voltage | 600mV |
| Max Reverse Voltage (DC) | 40V |
| Average Rectified Current | 350mA |
| Reverse Recovery Time | 10 ns |
| Peak Reverse Current | 5?A |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Capacitance @ Vr, F | 50pF @ 0V 1MHz |
| Peak Non-Repetitive Surge Current | 2A |
| Max Forward Surge Current (Ifsm) | 2A |
