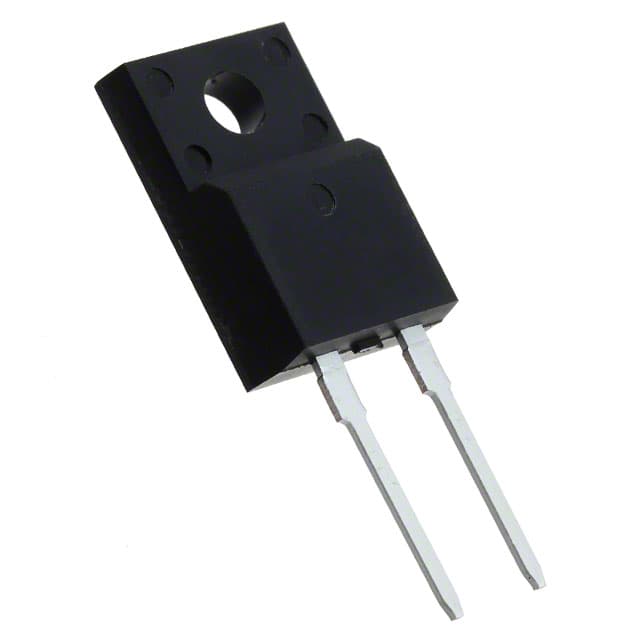

ROHM SCS310AMC

Manufacturer No:

SCS310AMC

Manufacturer:

ROHM

Package:

TO-220-2 Full Pack

Description:

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.5V @ 10A 175°C Max 50?A @ 650V 2-Termination TO-220-2 Full Pack Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCS310AMC information

ROHM SCS310AMC technical specifications, attributes, parameters and parts with similar specifications to ROHM SCS310AMC.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Through Hole

Package / Case
TO-220-2 Full Pack

Surface Mount
NO

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Additional Feature
PD-CASE

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PSFM-T2

Operating Temperature (Max)
175°C

Number of Elements
1

Configuration
SINGLE

Power Dissipation-Max
34W

Speed
No Recovery Time > 500mA (Io)

Diode Type
Silicon Carbide Schottky

Current - Reverse Leakage @ Vr
50?A @ 650V

Voltage - Forward (Vf) (Max) @ If
1.5V @ 10A

Case Connection
ISOLATED

Operating Temperature - Junction
175°C Max

Application
GENERAL PURPOSE

Voltage - DC Reverse (Vr) (Max)
650V

Current - Average Rectified (Io)
10A DC

Number of Phases
1

Reverse Recovery Time
0ns

Rep Pk Reverse Voltage-Max
650V

JEDEC-95 Code
TO-220AC

Capacitance @ Vr, F
500pF @ 1V 1MHz

Non-rep Pk Forward Current-Max
69A

Reverse Current-Max
50?A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM SCS310AMC.

Datasheets:

rohmsemiconductor-scs310amc-datasheets-1356.pdf

SCS310AMC Overview

When the maximum reverse current is allowed, it reaches 50?A.The maximum output current is 10A.

SCS310AMC Features

A maximum reverse current of 50?A
10A is the maximum value

SCS310AMC Applications

There are a lot of ROHM Semiconductor
SCS310AMC applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
