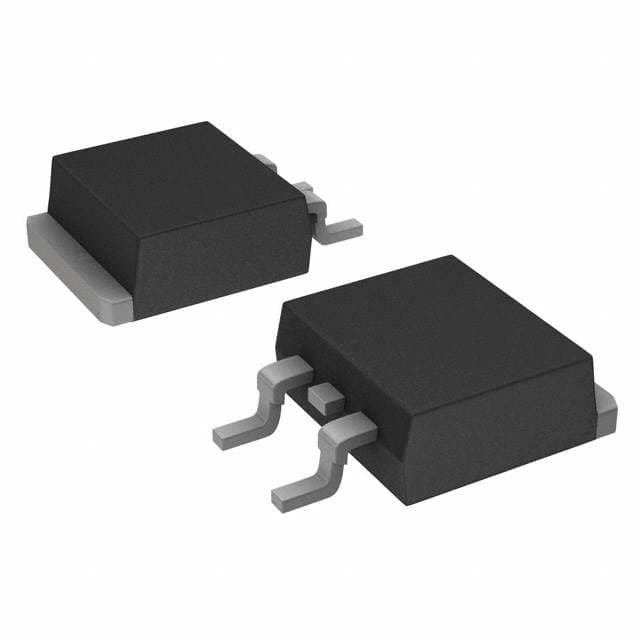

ROHM SCS306AJTLL

Manufacturer No:

SCS306AJTLL

Manufacturer:

ROHM

Package:

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.5V @ 6A 175°C Max 30?A @ 650V 2-Termination Tape & Reel (TR) TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCS306AJTLL information

ROHM SCS306AJTLL technical specifications, attributes, parameters and parts with similar specifications to ROHM SCS306AJTLL.

Type
Parameter

Factory Lead Time
20 Weeks

Mounting Type
Surface Mount

Package / Case
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Surface Mount
YES

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Additional Feature
LOW LEAKAGE CURRENT, PD-CASE

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PSSO-G2

Operating Temperature (Max)
175°C

Number of Elements
1

Configuration
SINGLE

Power Dissipation-Max
50W

Speed
No Recovery Time > 500mA (Io)

Diode Type
Silicon Carbide Schottky

Current - Reverse Leakage @ Vr
30?A @ 650V

Voltage - Forward (Vf) (Max) @ If
1.5V @ 6A

Case Connection
CATHODE

Operating Temperature - Junction
175°C Max

Application
GENERAL PURPOSE

Voltage - DC Reverse (Vr) (Max)
650V

Current - Average Rectified (Io)
6A DC

Number of Phases
1

Reverse Recovery Time
0ns

Rep Pk Reverse Voltage-Max
650V

Capacitance @ Vr, F
300pF @ 1V 1MHz

Non-rep Pk Forward Current-Max
39A

Reverse Current-Max
30?A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM SCS306AJTLL.

Datasheets:

rohmsemiconductor-scs306ajtll-datasheets-8244.pdf

SCS306AJTLL Overview

At maximum reverse current, 30?A is reached.Phase diode rectifier is possible to produce a maximum output current by setting the output current to 6A.

SCS306AJTLL Features

A maximum reverse current of 30?A
6A is the maximum value

SCS306AJTLL Applications

There are a lot of ROHM Semiconductor
SCS306AJTLL applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
