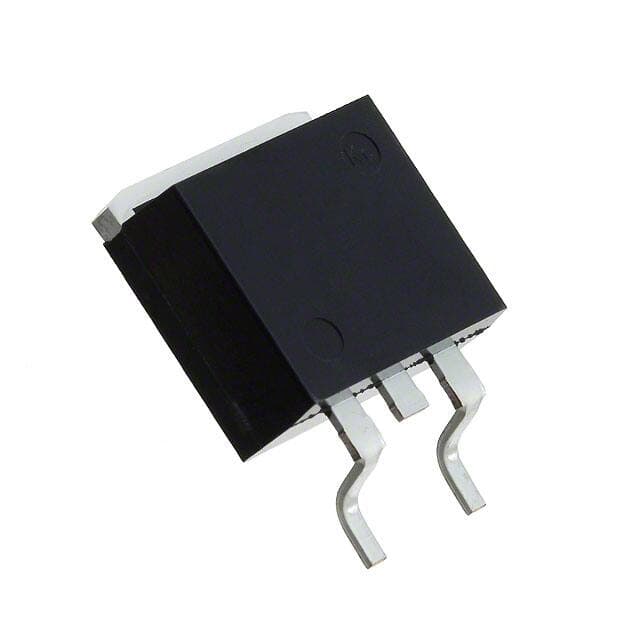

ROHM SCS210AJTLL

Manufacturer No:

SCS210AJTLL

Manufacturer:

ROHM

Package:

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.55V @ 10A 175°C Max 200?A @ 600V 2-Termination Cut Tape (CT) TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCS210AJTLL information

ROHM SCS210AJTLL technical specifications, attributes, parameters and parts with similar specifications to ROHM SCS210AJTLL.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Number of Pins
3

Packaging
Cut Tape (CT)

Published
2011

JESD-609 Code
e2

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Tin/Copper (Sn/Cu)

Max Operating Temperature
175°C

Min Operating Temperature
-55°C

HTS Code
8541.10.00.80

Max Power Dissipation
83W

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SCS210

JESD-30 Code
R-PSSO-G2

Element Configuration
Common Cathode

Speed
No Recovery Time > 500mA (Io)

Diode Type
Silicon Carbide Schottky

Current - Reverse Leakage @ Vr
200?A @ 600V

Voltage - Forward (Vf) (Max) @ If
1.55V @ 10A

Forward Current
10A

Operating Temperature - Junction
175°C Max

Application
GENERAL PURPOSE

Current - Average Rectified (Io)
10A DC

Forward Voltage
1.35V

Max Reverse Voltage (DC)
600V

Average Rectified Current
10A

Number of Phases
1

Reverse Recovery Time
0ns

Peak Reverse Current
200?A

Max Repetitive Reverse Voltage (Vrrm)
650V

Capacitance @ Vr, F
365pF @ 1V 1MHz

Max Forward Surge Current (Ifsm)
40A

Natural Thermal Resistance
1.8 °C/W

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ROHM SCS210AJTLL.

SCS210AJTLL Overview

The average rectified current for this device is 10A volts.When the forward current reaches 10A, it is allowed.Electrical and electronic devices produce the least 83W heat (energy loss).Objects and materials resist heat flow by their thermal resistance, and their natural thermal resistance is 1.8 °C/W.A data chart shows that the peak reverse is 200?A in the datasheets.

SCS210AJTLL Features

an average rectified current of 10A volts
the least amount of 83W heat (energy loss)
the peak reverse is 200?A

SCS210AJTLL Applications

There are a lot of ROHM Semiconductor
SCS210AJTLL applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
