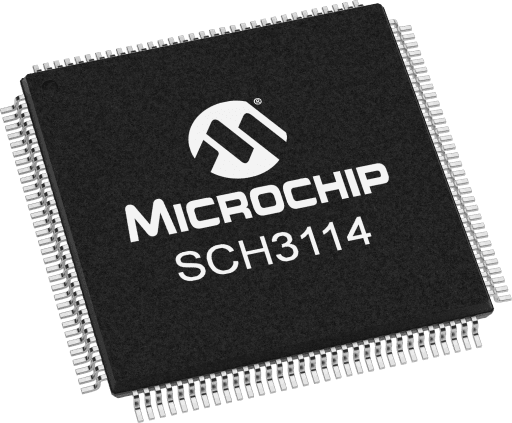

Microchip SCH3114I-NU
Microchip SCH3114I-NU

Microchip SCH3114I-NU

Manufacturer No:

SCH3114I-NU

Manufacturer:

Microchip

Package:

128-TQFP

Description:

Super I/O Controller with multiple serial ports, 8042 KBC, reset generation, nRSMRST Clock output and Hardware Monitoring

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCH3114I-NU information

Microchip SCH3114I-NU technical specifications, attributes, parameters and parts with similar specifications to Microchip SCH3114I-NU.

  • Type
  • Parameter
  • Customer Programmable RAM
  • No
  • Intruder Detection
  • No
  • Operating Temperature
  • -40° C to +85° C
  • PCH Temp Monitoring
  • Yes
  • Low Power Timers
  • 0
  • Tach
  • 3
  • Deep Sleep S5
  • No
  • Fan Tachometer Inputs
  • 0
  • Glue Logic
  • Yes
  • 8024 Keyboard Controller
  • Yes
  • PCI Resets
  • 3
  • PECI Support
  • No
  • HW Auto Fan Controller
  • 0
  • RRCC Auto Fan
  • No
  • Legacy I/O
  • Yes
  • GPIO
  • 40
  • PWM
  • 3
  • Package
  • 128 VTQFP
  • LED
  • 2
  • SMBus Interface
  • No
  • Capture/_Compare
  • 0
  • Temp Monitoring
  • 0
  • SMBus Ports
  • 0
  • BC Link
  • 0
  • Security Key Register
  • 32 byte
  • EEPROM
  • 0
  • AMD SB-TSI
  • No
  • PECI
  • 0
  • Resume Reset
  • No
  • System Controller
  • State Machine
  • ACPI Interfaces
  • 0
  • Fan Control Engine
  • µController
  • Counter/Timers
  • 0

Download datasheets and manufacturer documentation for Microchip SCH3114I-NU.

Brochures:

Data Sheets:

The SCH3114 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface that also includes Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic.

The system’s hardware monitoring capability includes temperature, voltage and fan speed monitoring. The Motherboard Glue logic includes various power management and system logic including generation of nRSMRST, a programmable Clock output, and reset generation, which include a watchdog timer. SCH3114 incorporates complete legacy Super I/O, including a floppy disk controller with Microchip's true CMOS 765B core and enhanced digital data separator. True CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with Microchip's proprietary 82077AA core. The family supports multiple low power-down modes, and the ISA Plug-and-Play Standard register set (Version 1.0a).

Family parts
SCH3114I-NU
SCH3114-NU



  • 8042 Keyboard Controller
  • 128 VTQFP Package
  • Legacy I/O
  • 40 GPIO Pins
  • 32 byte Security Key Register
  • μController Fan Control Engine
  • PCH (Platform Controller Hub) Temperature monitoring
  • Glue logic
  • 3 PWM Outputs
  • 3 fan tachometer inputs
  • IEEE 1284, EPP and ECP Compatible Parallel Port
  • One IrDA 1.0 Infrared Port
  • NS16550 compatible UART serial ports
  • Four 8-pin serial ports
  • Two 4-pin serial ports
  • ACPI 1.0/2.0 compatible

User Guide
