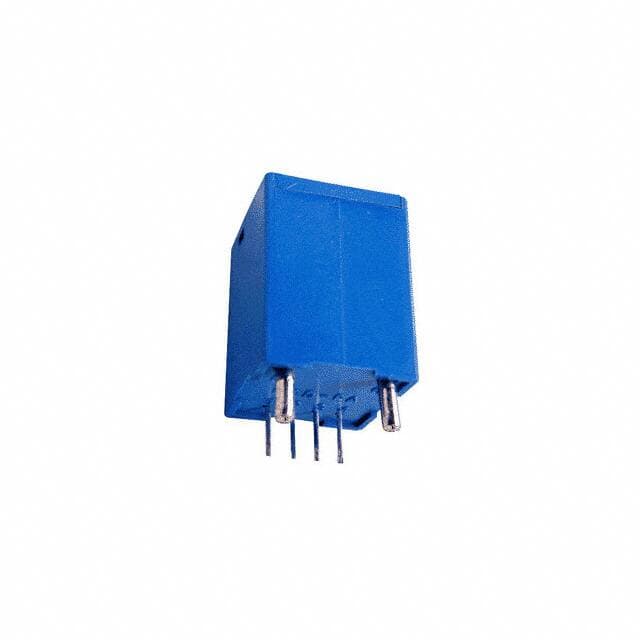

CUI SCD15PUN

Manufacturer No:

SCD15PUN

Manufacturer:

CUI

Package:

Module

Description:

SCD Series Hall Effect, Open Loop Sensor 1-Channel Unidirectional -10°C~75°C 5V 50Hz/60Hz Linearity-±0.5%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SCD15PUN information

CUI SCD15PUN technical specifications, attributes, parameters and parts with similar specifications to CUI SCD15PUN.

Type
Parameter

Package / Case
Module

Operating Temperature
-10°C~75°C

Packaging
Bulk

Series
SCD

Published
2002

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
5V

Current Rating
15A

Frequency
50Hz/60Hz

Output
Ratiometric, Voltage

Current - Supply (Max)
10mA

Output Voltage
2.3V

Number of Channels
1

Polarization
Unidirectional

Max Supply Current
10mA

Response Time
7?s

Sensor Type
Hall Effect, Open Loop

Linearity
±0.5%

For Measuring
DC

Height
20mm

Width
15mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for CUI SCD15PUN.

Datasheets:

cui-scd15pun-datasheets-8430.pdf

SCD15PUN Overview

Safety precautions are taken by putting the current sensors in Module packages. The current sensors are enclosed in the Bulk to prevent them from being damaged. These current sensors should supply 10mA current at their maximum. Current sensors should supply no more current than 10mA. For current sensors, 15A is the current of interest. When current sensors are used, their voltage output should be 2.3V.

SCD15PUN Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -10°C~75°C
1 Channels
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: 50Hz/60Hz
Module Package

SCD15PUN Applications

There are a lot of CUI Devices
SCD15PUN Current Sensors applications.

Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
