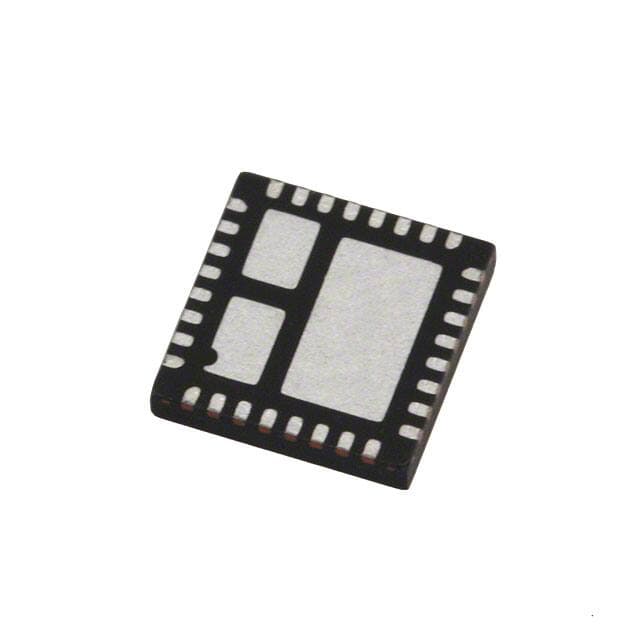

Semtech SC417MLTRC

Manufacturer No:

SC417MLTRC

Manufacturer:

Semtech

Package:

QCCN, LCC32,.2SQ,20

Description:

Description: Dual Switching Controller, Voltage-mode, 10A, 1000kHz Switching Freq-Max, MLPQ-32

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SC417MLTRC information

Semtech SC417MLTRC technical specifications, attributes, parameters and parts with similar specifications to Semtech SC417MLTRC.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
SEMTECH CORP

Package Description
QCCN, LCC32,.2SQ,20

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
SEMTECH

Additional Feature
OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.5V TO 5.5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Input Voltage-Max
28 V

Input Voltage-Min
3 V

Input Voltage-Nom
12 V

JESD-30 Code
S-XXMA-N32

Length
5 mm

Number of Functions
1

Number of Terminals
32

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Output Current-Max
10 A

Package Body Material
UNSPECIFIED

Package Code
QCCN

Package Shape
SQUARE

Package Style
MICROELECTRONIC ASSEMBLY

Qualification Status
Not Qualified

Seated Height-Max
1 mm

Surface Mount
YES

Switcher Configuration
BUCK

Switching Frequency-Max
1000 kHz

Temperature Grade
AUTOMOTIVE

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
UNSPECIFIED

Width
5 mm

Download datasheets and manufacturer documentation for Semtech SC417MLTRC.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

SC417MLTRC Overview

For ease of voltage regulators' transportation, it is packaged in 32-WFQFN Exposed Pad boxes.Embark on a journey with package Tape & Reel (TR).Voltage regulator supports up to 2 outputs in total.In order to prevent malfunctions, it is recommended that the operating temperature be set to -40°C~85°C.Search SC417 for more pin-to-pin solutions.switching regulator 32 terminals can be found here.There are other Switching Regulator or Controllerss in the industry, such as the voltage regulator DC to DC, that play an important role.A specialiOUTPUT VOLTAGE IS ADJUSTABLE FROM 0.5V TO 5.5Vation of the IC and OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.5V TO 5.5V is evident.Suitable for mounting on PCBs and other boards, it has a Surface Mount.Here is a switching regulator from EcoSpeed®, SmartDrive?.

SC417MLTRC Features

2 outputs
Operating Temperature: -40°C~85°C
OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.5V TO 5.5V

SC417MLTRC Applications

There are a lot of Semtech Corporation
SC417MLTRC Linear Regulator Controllers applications.

High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
Battery Operating Equipment
