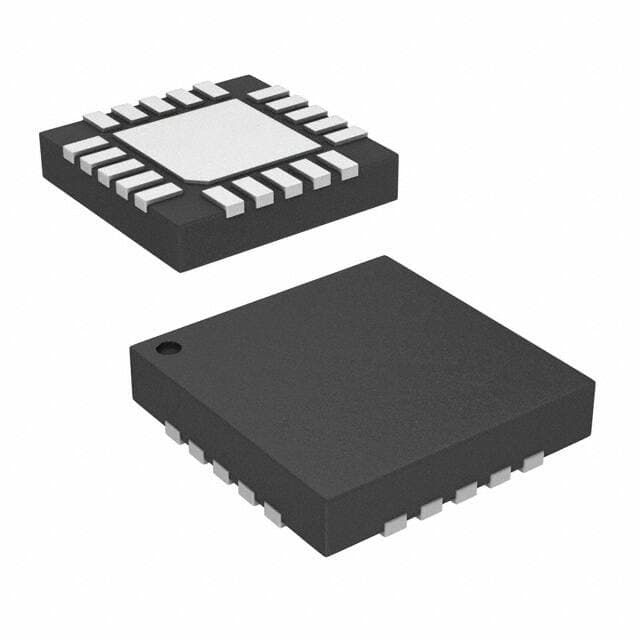

Semtech SC284ULTRT

Manufacturer No:

SC284ULTRT

Manufacturer:

Semtech

Package:

20-VFQFN Exposed Pad

Description:

20 Terminals 2.9V 20-Pin SC284 DC DC Voltage Regulator SWITCHING REGULATOR 2 Outputs 2.5MHz Tape & Reel (TR) 1.8A 20-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SC284ULTRT information

Semtech SC284ULTRT technical specifications, attributes, parameters and parts with similar specifications to Semtech SC284ULTRT.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-VFQFN Exposed Pad

Number of Pins
20

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Pitch
0.4mm

Base Part Number
SC284

Function
Step-Down

Number of Outputs
2

Efficiency
94 %

Voltage - Input (Max)
5.5V

Output Type
Programmable

Voltage - Input (Min)
2.9V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Max Output Voltage
3.3V

Voltage - Output (Min/Fixed)
0.8V

Topology
Buck

Control Mode
VOLTAGE-MODE

Frequency - Switching
2.5MHz

Synchronous Rectifier
Yes

Min Output Voltage
800mV

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Semtech SC284ULTRT.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

SC284ULTRT Overview

Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 20 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. There is a 20-VFQFN Exposed Pad package available for this voltage regulator, as DC DC switching regulator is space-saving. 2 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Programmable output. Switching regulators like this one can be mounted on the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~85°C TA. In this voltage regulator 12v, the switching frequency is 2.5MHz. Regulator 2.9V can operate with dc to dc voltage regulator's minimum input voltage 2.9V. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 0.8V. DC DC switching regulator's maximum design flexibility comes from its output current of 1.8A. Voltage regulator's input voltage can reach 5.5V. There is a subcategory of this regulator voltage called Switching Regulator or Controllers. SC284 is a family of voltage regulators that belong to the DC/DC industry. In order to operate voltage regulator, 20 pins are required. This voltage regulator 12v should be configured with an output voltage that is at least 800mV. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 3.3V.

SC284ULTRT Features

2 outputs
20 pins

SC284ULTRT Applications

There are a lot of Semtech Corporation
SC284ULTRT Voltage Regulators applications.

Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
