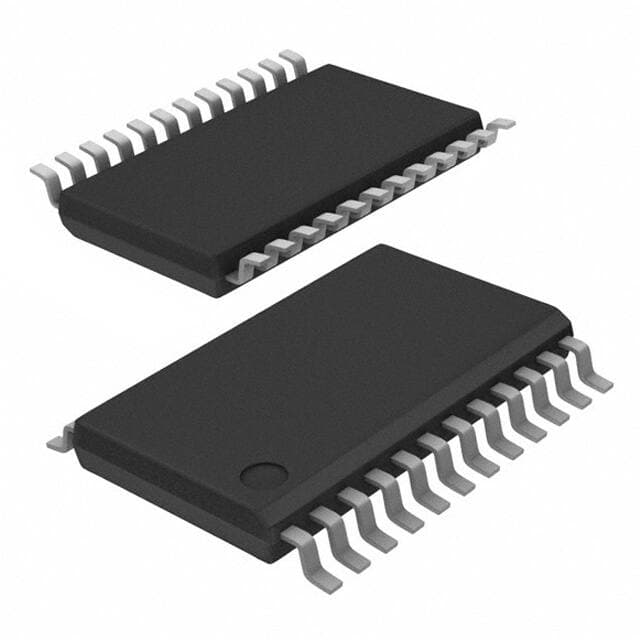

Semtech SC2442ITSTRT

Manufacturer No:

SC2442ITSTRT

Manufacturer:

Semtech

Package:

24-TSSOP (0.173, 4.40mm Width)

Description:

24 Terminals 4.75V~30V 24-Pin SC2442 DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs 100kHz~1.1MHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SC2442ITSTRT information

Semtech SC2442ITSTRT technical specifications, attributes, parameters and parts with similar specifications to Semtech SC2442ITSTRT.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
24-TSSOP (0.173, 4.40mm Width)

Surface Mount
YES

Number of Pins
24

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Published
2012

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Additional Feature
ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.75V

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Terminal Pitch
0.65mm

Frequency
1.1MHz

Base Part Number
SC2442

Function
Step-Down

Number of Outputs
2

Qualification Status
Not Qualified

Output Type
Transistor Driver

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Output Configuration
Positive

Output Current
500mA

Voltage - Supply (Vcc/Vdd)
4.75V~30V

Control Features
Enable, Frequency Control, Soft Start

Input Voltage (Min)
4.75V

Topology
Buck

Control Mode
VOLTAGE-MODE

Frequency - Switching
100kHz~1.1MHz

Input Voltage (Max)
30V

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
94 %

Length
7.8mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Semtech SC2442ITSTRT.

PCN Packaging:

semtechcorporation-sx1239imltrt-pcnpackaging-9522.pdf

Datasheets:

semtech-sc2442itstrt-datasheets-7558.pdf

SC2442ITSTRT Overview

It comes in a 24-TSSOP (0.173, 4.40mm Width) package, so switching controller can be used for most applications. This dc motor controller can be used to generate outputs with 2 numbers. Tape & Reel (TR) is the solid enclosure in which PMIC is packaged. With Transistor Driver dc switching's output (s), it is able to handle it. dc controls with 4.75V~30V voltage are supplied and operated. A -40°C~125°C TJ dc switcher is not a problem. A switching controller such as this can switch at a value of 100kHz~1.1MHz . It is suitable for general dc dc regulator when it is set to Surface Mount. DCDC regulator is controlled efficiently by Enable, Frequency Control, Soft Start. Switch converters are connected to ICs with DUAL SWITCHING CONTROLLER analog outputs. Thare switching converters has a terminal (s) at DUAL . A variety of 24 terminations are available in dc switching. These dc dc converter ics adapt several control methods, including PULSE WIDTH MODULATION. DC switcher's input voltageis 24V volts. SC2442 can be used to locate other relevant dc to dc converter ics. The switching converter has a total of 24 pins. Switching converter is a special type of Switching Regulator or Controllers. 4.75V should be the minimum input voltage for the dc dc voltage regulator. The dc to dc regulator is limited to 30V input voltage. You should note down the dc dc regulator's usual output current of 500mA when you start a project. A duty cycle set at 94 % ensures voltage regulator dc to dc reliability during power-on and power-off. Switching controller operates at a frequency of 1.1MHz. As a result, DC to DC voltage regulator has a value of ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.75V so that the need can be met more directly.

SC2442ITSTRT Features

Transistor Driver Outputs
Switching Frequency: 100kHz~1.1MHz
Enable, Frequency Control, Soft Start
PULSE WIDTH MODULATION
Max Duty Cycle: 94 %
Frequency: 1.1MHz
ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.75V

SC2442ITSTRT Applications

There are a lot of Semtech Corporation
SC2442ITSTRT DC to DC converter applications.

Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
