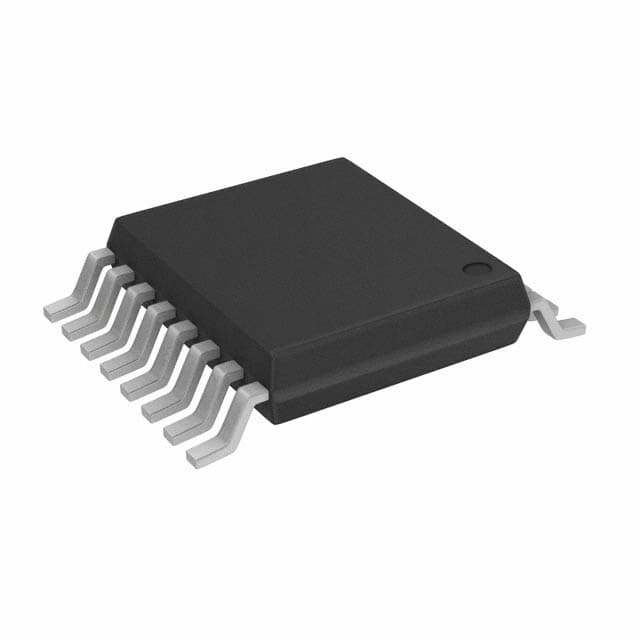

NXP SC16IS741AIPWJ

Manufacturer No:

SC16IS741AIPWJ

Manufacturer:

NXP

Package:

16-TSSOP (0.173, 4.40mm Width)

Description:

3.3V V 1.1mm mm 4.4mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 5mm mm 16 NOT SPECIFIED 16

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SC16IS741AIPWJ information

NXP SC16IS741AIPWJ technical specifications, attributes, parameters and parts with similar specifications to NXP SC16IS741AIPWJ.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
16-TSSOP (0.173, 4.40mm Width)

Surface Mount
YES

Operating Temperature (Max.)
95°C

Operating Temperature (Min.)
-40°C

Usage Level
Industrial grade

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Additional Feature
IT ALSO OPERATES AT 48MHZ CLCK @ 2.5V NOM SPLY @ -40 TO 85DEGC, SPI INTRFC IS ALSO AVAILABLE

HTS Code
8542.31.00.01

Voltage - Supply
2.3V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

JESD-30 Code
R-PDSO-G16

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Channels
1, UART

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, I2C BUS

Clock Frequency
80MHz

Protocol
RS232, RS485

Boundary Scan
NO

Low Power Mode
YES

Data Rate (Max)
5Mbps

Number of Serial I/Os
1

Bus Compatibility
I2C; RS485; RS232

Data Transfer Rate-Max
0.625 MBps

FIFO's
64 Byte

With Modem Control
Yes

Length
5mm

Height Seated (Max)
1.1mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP SC16IS741AIPWJ.

Product Description:

The SC16IS741AIPWJ is a high-performance, industrial-grade UART (Universal Asynchronous Receiver Transmitter) interface IC from NXP USA Inc. This 16-pin TSSOP package is designed for surface-mount applications and operates in a wide temperature range of -40°C to 85°C. The IC supports multiple protocols, including RS232 and RS485, and features a high-speed SPI interface for easy configuration.

Features:

High-speed operation up to 5 Mbps data rate
64-byte FIFO for improved data transfer efficiency
Low power mode for reduced power consumption
Supports multiple protocols: RS232, RS485, and SPI
Operating temperature range: -40°C to 85°C
Industrial-grade temperature range: -40°C to 95°C
Surface-mount package for compact design
Compatible with I2C bus for easy configuration

Applications:

Primary applications: Industrial automation, medical devices, and automotive systems
Secondary applications: Consumer electronics, telecommunications, and industrial control systems

Alternative Parts:

SC16IS741AIPWJ is an alternative to other UART ICs such as the Maxim MAX3221 and the Texas Instruments SN65HVD12.

Embedded Modules:

This component is used in various embedded systems, including industrial control systems, medical devices, and automotive systems.

FAQs:

Q: What is the maximum data transfer rate of the SC16IS741AIPWJ? A: The maximum data transfer rate is 0.625 MBps.

Q: What is the operating temperature range of the SC16IS741AIPWJ? A: The operating temperature range is -40°C to 85°C.

Q: Does the SC16IS741AIPWJ support low power mode? A: Yes, the SC16IS741AIPWJ supports low power mode for reduced power consumption.

Q: What is the package type of the SC16IS741AIPWJ? A: The package type is a 16-pin TSSOP (0.173, 4.40mm Width).

Q: Is the SC16IS741AIPWJ RoHS compliant? A: Yes, the SC16IS741AIPWJ is RoHS3 compliant.

Q: What is the supply voltage range of the SC16IS741AIPWJ? A: The supply voltage range is 2.3V to 3.6V.

Q: Does the SC16IS741AIPWJ support SPI interface? A: Yes, the SC16IS741AIPWJ supports SPI interface for easy configuration.

Q: What is the qualification status of the SC16IS741AIPWJ? A: The qualification status is Not Qualified.

Q: What is the published date of the SC16IS741AIPWJ? A: The published date is 2008.
