Sullins Connector Solutions SBH11-PBPC-D13-ST-BK

Manufacturer No:

SBH11-PBPC-D13-ST-BK

Manufacturer:

Sullins Connector Solutions

Package:

Description:

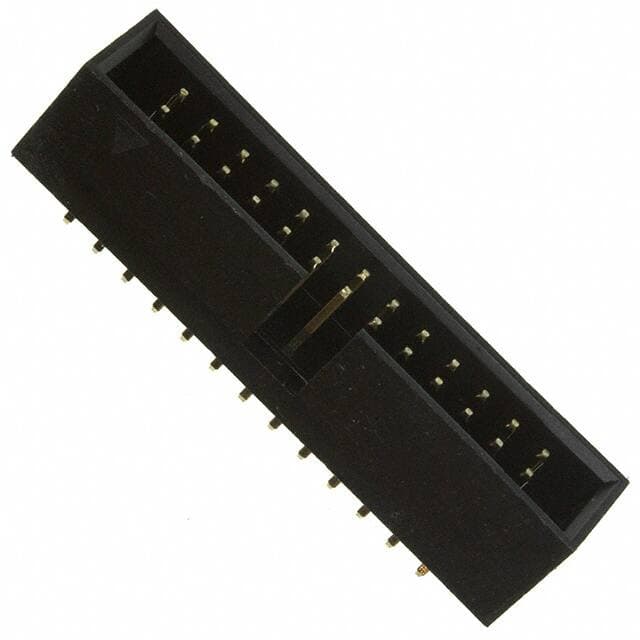

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SBH11-PBPC-D13-ST-BK information

Sullins Connector Solutions SBH11-PBPC-D13-ST-BK technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions SBH11-PBPC-D13-ST-BK.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
SULLINS CONNECTOR SOLUTIONS INC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.69.40.40

Samacsys Manufacturer
Sullins

Body Breadth
0.358 inch

Body Depth
0.346 inch

Body Length
1.595 inch

Connector Type
BOARD CONNECTOR

Contact Finish Mating
NOT APPLICABLE

Contact Finish Termination
Gold (Au)

Contact Gender
MALE

Contact Material
NOT APPLICABLE

Contact Pattern
RECTANGULAR

Contact Resistance
20 mΩ

Contact Style
SQ PIN-SKT

DIN Conformance
NO

Filter Feature
NO

IEC Conformance
NO

Insulation Resistance
1000000000 Ω

Insulator Color
BLACK

Insulator Material
POLYBUTYLENE TEREPHTHALATE

MIL Conformance
NO

Mating Contact Pitch
0.1 inch

Mating Contact Row Spacing
0.1 inch

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
STRAIGHT

Mounting Type
BOARD

Number Of Connectors
ONE

Number Of PCB Rows
2

Number of Rows Loaded
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-40 °C

Option
GENERAL PURPOSE

PCB Contact Pattern
RECTANGULAR

PCB Contact Row Spacing
2.54 mm

Plating Thickness
FLASH inch

Polarization Key
POLARIZED HOUSING

Rated Current (Signal)
3 A

Reference Standard
UL

Terminal Length
0.118 inch

Terminal Pitch
2.54 mm

Termination Type
SOLDER

Download datasheets and manufacturer documentation for Sullins Connector Solutions SBH11-PBPC-D13-ST-BK.

Datasheets:

sullinsconnectorsolutions-sbh11pbpcd07stbk-datasheets-6604.pdf

Environmental Information:

sullinsconnectorsolutions-wct001mct-environmentalinformation-6146.pdf

SBH11-PBPC-D13-ST-BK Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the SBH11 Series.Several benefits come from the Keying Slot feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
