INTEL SB80C188EC13
INTEL SB80C188EC13

INTEL SB80C188EC13

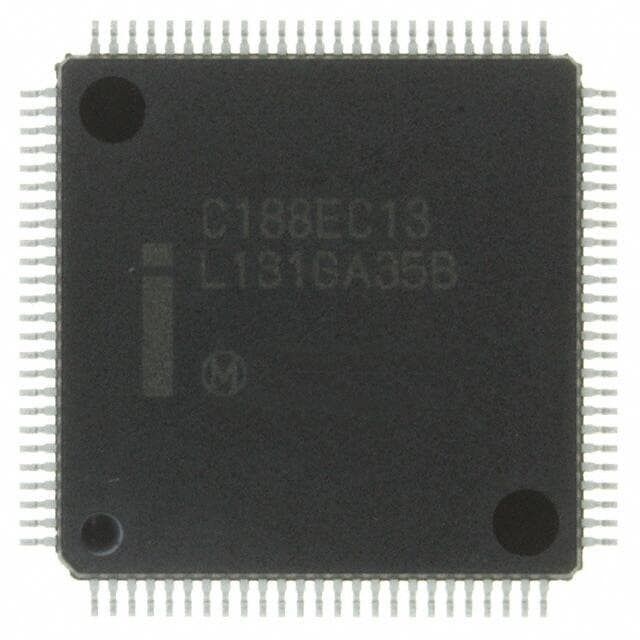

Manufacturer No:

SB80C188EC13

Manufacturer:

INTEL

Package:

100-BFQFP

Description:

0.5mm 80C186 5V 16-bit Microprocessor i186 Series 100-Pin 13MHz 5V 100-BFQFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SB80C188EC13 information

INTEL SB80C188EC13 technical specifications, attributes, parameters and parts with similar specifications to INTEL SB80C188EC13.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • 100-BFQFP
  • Number of Pins
  • 100
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tray
  • Series
  • i186
  • Published
  • 1996
  • JESD-609 Code
  • e0
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 100
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Subcategory
  • Microprocessors
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.5mm
  • Frequency
  • 13MHz
  • Pin Count
  • 100
  • Operating Supply Voltage
  • 5V
  • Power Supplies
  • 5V
  • Voltage
  • 5V
  • Max Supply Voltage
  • 5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR
  • Core Processor
  • 80C186
  • Supply Current-Max
  • 70mA
  • Bit Size
  • 16
  • Access Time
  • 13 ?s
  • Address Bus Width
  • 20
  • Boundary Scan
  • NO
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 8
  • Format
  • FIXED POINT
  • Integrated Cache
  • NO
  • Voltage - I/O
  • 5.0V
  • Number of Cores/Bus Width
  • 1 Core 16-Bit
  • Graphics Acceleration
  • No
  • RAM Controllers
  • DRAM
  • Additional Interfaces
  • Serial Communications Unit (SCU)
  • Length
  • 14mm
  • Height Seated (Max)
  • 1.66mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL SB80C188EC13.

Datasheets:

ConflictMineralStatement:

SB80C188EC13 Overview


Packed in 100-BFQFP, the microprocessor is convenient for shipping overseas. Advanced packaging method Tray is used to provide high reliability. The CPU has 1 Core 16-Bit cores/Bus width. Extended operating temperature around 0°C~70°C TA. It comes from the i186 series. This CPU is cored with a 80C186 processor. This CPU uses DRAM RAM controllers. To serve better this microprocessor features Serial Communications Unit (SCU) interfaces. This CPU runs I/O at 5.0V. As far as the uPs/uCs/Peripheral ICs type is concerned, this is a MICROPROCESSOR. There are 100 terminations totally. With a 5V voltage supply, the part should be turned on and run. It has a 16-Bit architecture. The CPU operates at a frequency of 13MHz. Please refer to the datasheets for 100 pins functions. This microprocessor is a typical Microprocessors. This CPU has a wide external data Bus width of 8. 100 pins are injected into the part body. Surface Mount mounted, this CPU is widely used in many applications. The micro processor can function from 5V. As specified in datasheets, the embedded microprocessor requires 5V power supplies. The CPU core voltage is 5V. You can supply voltage 70mA higher than 70mA to the CPU. In a normal situation, users should not supply the CPU microprocessor with a voltage higher than 5.5V. The lowest voltage fed to the CPU microprocessor should be 4.5V.

SB80C188EC13 Features


80C186 Core
16-Bit Structure


SB80C188EC13 Applications


There are a lot of Intel
SB80C188EC13 Microprocessor applications.


  • Measurement and control field
  • Automatic control
  • Equipment control
  • Instrument control
  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
