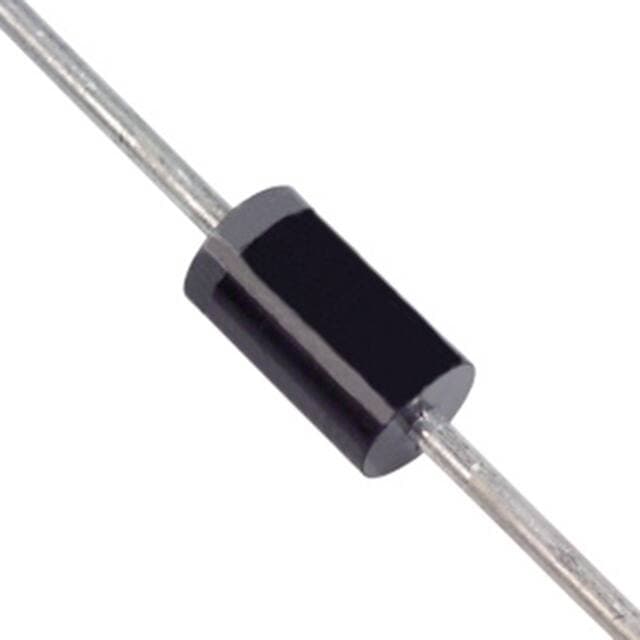

Diodes SB5100-T
Diodes SB5100-T

Diodes SB5100-T

Manufacturer No:

SB5100-T

Manufacturer:

Diodes

Package:

DO-201AD, Axial

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 800mV @ 5A -65°C~150°C 500?A @ 100V 2-Termination Tape & Reel (TR) DO-201AD, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SB5100-T information

Diodes SB5100-T technical specifications, attributes, parameters and parts with similar specifications to Diodes SB5100-T.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • DO-201AD, Axial
  • Number of Pins
  • 2
  • Weight
  • 1.09999g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE, LOW POWER LOSS
  • Capacitance
  • 400pF
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 100V
  • Terminal Form
  • WIRE
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • SB5100
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 500?A @ 100V
  • Output Current
  • 5A
  • Voltage - Forward (Vf) (Max) @ If
  • 800mV @ 5A
  • Case Connection
  • ISOLATED
  • Forward Current
  • 5A
  • Operating Temperature - Junction
  • -65°C~150°C
  • Application
  • EFFICIENCY
  • Forward Voltage
  • 800mV
  • Max Reverse Voltage (DC)
  • 100V
  • Average Rectified Current
  • 5A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 500?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 100V
  • Capacitance @ Vr, F
  • 400pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 150A

Download datasheets and manufacturer documentation for Diodes SB5100-T.

SB5100-T Overview


In this device, there is an average rectified current of 5A volts.Forward current may not exceed 5A.5A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.Depending on the capacitance, the device may deliver a value of 400pF.As the data chart indicates, the peak reverse is 500?A.

SB5100-T Features


an average rectified current of 5A volts
a current rating of 5A
the peak reverse is 500?A


SB5100-T Applications


There are a lot of Diodes Incorporated
SB5100-T applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
