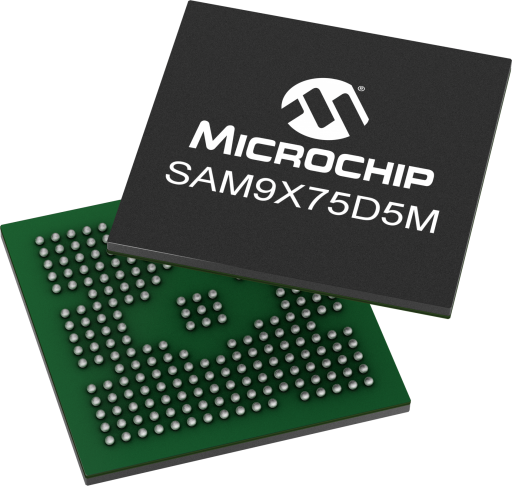

Microchip SAM9X75D5M-V/4TB-SL3
Manufacturer No:
SAM9X75D5M-V/4TB-SL3
Manufacturer:
Microchip
Description:
Microprocessors - MPU ARM926 MPU,512M DDR2,MIPI,LVDS,CAN-FD,BGA,EXT TEMP,TRAY
Quantity:
In Stock :9067
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Wed, Jul 1 - Thu, Jul 2, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SAM9X75D5M-V/4TB-SL3 Information
Microchip SAM9X75D5M-V/4TB-SL3 technical specifications, attributes, parameters and parts with similar specifications to Microchip SAM9X75D5M-V/4TB-SL3.
- Type
- Parameter
- Manufacturer Part Number
- SAM9X75D5M-V/4TB-SL3
- Packaging
- Tray
- Standard Pack Qty
- 84
- ECCN
- 5A992.C
- TARIC
- 8542319000
- USHTS
- 8542310050
- Lifecycle Status
- New Product
- Factory Lead Time
- 49 Days
- RoHS Status
- RoHS Compliant
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip SAM9X75D5M-V/4TB-SL3.
Application Notes:
The SAM9X75D5M MPU is a high-performance cost-optimized ARM926EJ-S CPU-based embedded MPU running up to 800MHz w/ 512Mb of integrated DDR2, supporting MIPI-DSI, LVDS and RGB display interfaces w/ 2D graphics acceleration, Gigabit Ethernet w/ TSN and CAN-FD. The MPUs offer advanced security functions, like tamper detection, secure boot, secure key storage, TRNG, PUF as well as higher-performance crypto accelerators for AES and SHA. The SAM9X75 series is supported by Microchip's Mainline Linux distribution as well as Microchip MPLAB Harmony development tools for bare-metal/RTOS support. SAM9X75 is well-suited for industrial and medical applications with or w/o graphical displays up to 1024 x 768, as well as home automation and security system gateways including access control with biometrics. Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X75 power sequencing specifications that are referenced in the product specification.
- Low System Cost and High Value Integration:
- 800MHz ARM926EJ-S Core, 266MHz System/Memory Bus
- Memories:
- 32 KB Data Cache and 32kB Instruction Cache
- 64 KB internal SRAM
- 16-bit DDR databus
- Enhanced User Interface capability:
- 24-bit LCD Controller with overlays up to 1024x768 resolution
- 2D Graphics Engine
- Built-in Class D Amplifier
- Display/Camera Support
- MIPI-DSI Display interface
- LVDS Display Interface
- RGB 24bit display interface
- MIPI-CSI Camera interface
- Large number of connectivity options:
- Single 10/100/1G Ethernet
- One Quad/Octal SPI controller
- Thirteen FLEXCOMs (USART, SPI and TWI/I2C)
- Two High-speed USB Host + One High-speed Host or Device
- Fully-Integrated Security:
- Secure Boot with on-chip Secure Key Storage (OTP)
- Hardware Encryption Engine (TDES, AES and SHA)
- FIPs compliant True Random Number Generator (TRNG)
- Physical protection against tamper, 8 tamper detection pins
- Rich Development Ecosystem:
- Free mainline Linux® Distribution
- MPLAB® X Integrated Development Environment and MPLAB® Harmony v3
- Optimized for Easy PCB Design and Low EMI
- TFBGA243, 16x16, 0.8 mm pitch - de-populated ball-out
- Power/GND balls placed and distributed for optimal decoupling
SAM9X75D5M-V/4TB-SL3 FAQ
Can I request a quote for SAM9X75D5M-V/4TB-SL3?
SAM9X75D5M-V/4TB-SL3 from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for SAM9X75D5M-V/4TB-SL3?
The final price for SAM9X75D5M-V/4TB-SL3 depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for SAM9X75D5M-V/4TB-SL3?
SAM9X75D5M-V/4TB-SL3 is a Microchip Microprocessors - MPU part. Key details include Packaging: Tray and Manufacturer Part Number: SAM9X75D5M-V/4TB-SL3 and Standard Pack Qty: 84; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for SAM9X75D5M-V/4TB-SL3?
After you submit the RFQ for SAM9X75D5M-V/4TB-SL3, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for SAM9X75D5M-V/4TB-SL3?
Once stock for SAM9X75D5M-V/4TB-SL3 is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to SAM9X75D5M-V/4TB-SL3?
Yes. If SAM9X75D5M-V/4TB-SL3 is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip Microprocessors - MPU parts and compatible replacement options.
