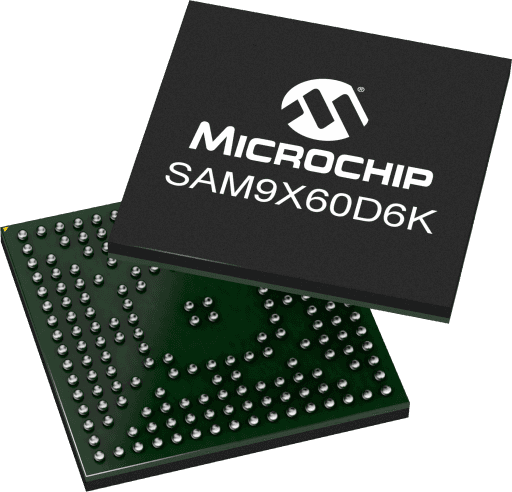

Microchip SAM9X60D6K-I/4GB
Microchip SAM9X60D6K-I/4GB

Microchip SAM9X60D6K-I/4GB

Manufacturer No:

SAM9X60D6K-I/4GB

Manufacturer:

Microchip

Package:

196-TFBGA

Description:

SAM9X60D6K

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SAM9X60D6K-I/4GB information

Microchip SAM9X60D6K-I/4GB technical specifications, attributes, parameters and parts with similar specifications to Microchip SAM9X60D6K-I/4GB.

  • Type
  • Parameter
  • CPU
  • ARM926
  • CPU Speed Max MHz (megahertz)
  • 600
  • RAM KB (kilobyte)
  • 64
  • Internal DRAM MB (megabyte)
  • 8
  • Int. DRAM Type
  • SDRAM
  • NAND Interface
  • Yes
  • Graphic LCD Interface
  • RGB
  • Graphics Controller/GPU
  • 2D GPU
  • Camera Interface
  • Parallel
  • QSPI
  • 1
  • U(S)ART
  • 13
  • SPI
  • 6
  • I2C
  • 13
  • I2S
  • 1
  • 10/100 Ethernet MAC
  • 2
  • CAN/CAN-FD
  • 2
  • Type of CAN module
  • CAN
  • SDIO/SD-CARD/eMMC
  • 2
  • Class D Amplifier Outputs
  • Yes
  • ADC Channels
  • 12
  • ADC Resolution b (bits)
  • 12
  • Crypto Engine
  • Yes
  • Secure Bootloader
  • Yes
  • Anti-Tampering Inputs
  • 8
  • TempRange Min
  • -40
  • TempRange Max
  • 85
  • I/O Pins Max
  • 112
  • Pincount
  • 196
  • Packages
  • TFBGA

Download datasheets and manufacturer documentation for Microchip SAM9X60D6K-I/4GB.

User Guide:

Legacy Collaterals:

Brochures:

Data Sheets:

Errata:

Application Notes:

Supporting Collateral:

The SAM9X60D6K is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 64Mbit integrated SDRAM memory. The SAM9X60D6K supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.

Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X60D6K power sequencing specifications. Go to Treelinktool under DC/DC converters, SAM9X60 and SDRAM for further information.



    High-performance Architecture:
  • 600MHz ARM926EJ-S Core, 200MHz System/Memory Bus
  • 32 KB Data Cache and 32KB Instruction Cache
  • Memories:
  • 64Mbit integrated SDRAM
  • 64 KB internal SRAM
    Enhanced User Interface capability:
  • 24-bit LCD Controller with overlays up to 1024x768 resolution
  • 2D Graphics Engine, Camera Interface
  • Built-in Class D Amplifier
    Large number of connectivity options:
  • Dual 10/100 Ethernet, Dual CAN, Dual SD Card/eMMC
  • Two High-speed USB Host + One High-speed Host or Device
  • Thirteen FLEXCOMs (USART, SPI and I²C)
    State-of-the-Art Security:
  • Hardware Encryption Engine (TDES, AES and SHA) and True Random Generator (TRNG)
  • Secure Boot with on-chip Secure Key Storage (OTP)
  • Physical protection against tamper, 8 tamper detection pins
  • On the Fly scrambling / unscrambling for memories
    Rich Development Ecosystem:
  • Free mainline Linux® Distribution
  • MPLAB® X Integrated Development Environment and MPLAB® Harmony v3
  • Multiple Third-party Software and Hardware Solutions
    Optimized for Easy PCB Design and Low EMI:
  • TFBGA196, 11x11, 0.65 mm pitch
  • Power/GND balls placed and distributed for optimal decoupling
  • Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI
