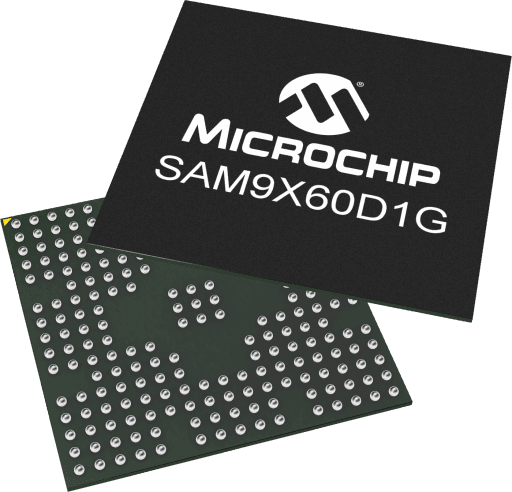

Microchip SAM9X60D1G-I/4FB
Manufacturer No:
SAM9X60D1G-I/4FB
Manufacturer:
Package:
233-TFBGA
Description:
SAM9X60
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SAM9X60D1G-I/4FB Information
Microchip SAM9X60D1G-I/4FB technical specifications, attributes, parameters and parts with similar specifications to Microchip SAM9X60D1G-I/4FB.
- Type
- Parameter
- CPU
- ARM926
- CPU Speed Max MHz (megahertz)
- 600
- RAM KB (kilobyte)
- 64
- Internal DRAM MB (megabyte)
- 128
- Int. DRAM Type
- DDR2
- NAND Interface
- Yes
- Graphic LCD Interface
- RGB
- Graphics Controller/GPU
- 2D GPU
- Camera Interface
- Parallel
- QSPI
- 1
- Type
- Parameter
- U(S)ART
- 13
- SPI
- 6
- I2C
- 13
- I2S
- 1
- 10/100 Ethernet MAC
- 2
- USB Interface
- 2 HS Host, 1 HS Host/Device
- USB Type C support
- no
- CAN/CAN-FD
- 2
- Type of CAN module
- CAN
- SDIO/SD-CARD/eMMC
- 2
Download datasheets and manufacturer documentation for Microchip SAM9X60D1G-I/4FB.
Brochures:
User Guide:
Application Notes:
The SAM9X60D1G is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with 1Gbit integrated DDR2 memory. The SAM9X60D1G supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. The device integrates powerful peripherals for connectivity and user interface applications. It offers State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES) as well as tamper pins.
Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X60D1G power sequencing specifications. Go to Treelinktool under DC/DC converters, SAM9X60 and DDR2 for further information.
- High-performance Architecture:
- 600MHz ARM926EJ-S Core, 200MHz System/Memory Bus
- 32 kB Data Cache and 32kB Instruction Cache
- Memories:
- 1Gbit integrated DDR2
- 64 kB internal SRAM
- Enhanced User Interface capability:
- 24-bit LCD Controller with overlays up to 1024x768 resolution
- 2D Graphics Engine, Camera Interface
- Built-in Class D Amplifier
- Large number of connectivity options:
- Dual 10/100 Ethernet, Dual CAN, Dual SD Card/eMMC
- Two High-speed USB Host + One High-speed Host or Device
- Thirteen FLEXCOMs (USART, SPI and I²C)
- State-of-the-Art Security:
- Hardware Encryption Engine (TDES, AES and SHA) and True Random Generator (TRNG)
- Secure Boot with on-chip Secure Key Storage (OTP)
- Physical protection against tamper, 8 tamper detection pins
- On the Fly scrambling / unscrambling for memories
- Rich Development Ecosystem:
- Free mainline Linux® Distribution
- MPLAB® X Integrated Development Environment and MPLAB® Harmony v3
- Multiple Third-party Software and Hardware Solutions
- Optimized for Easy PCB Design and Low EMI:
- TFBGA233, 14x14, 0.8 mm pitch
- Power/GND balls placed and distributed for optimal decoupling
- Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI
