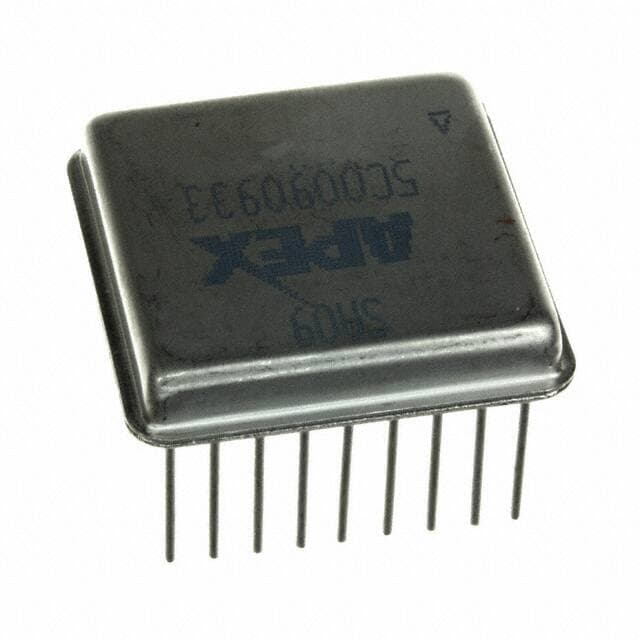

APEX SA09

Manufacturer No:

SA09

Manufacturer:

APEX

Package:

18-DIP Module

Description:

Instrumentational OP Amps 5V~40V SA* 18 Pins 18-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SA09 information

APEX SA09 technical specifications, attributes, parameters and parts with similar specifications to APEX SA09.

Type
Parameter

Mounting Type
Through Hole

Package / Case
18-DIP Module

Surface Mount
NO

Operating Temperature
-25°C~85°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
18

ECCN Code
EAR99

Terminal Position
DUAL

Terminal Form
PIN/PEG

Number of Functions
1

Supply Voltage
12V

Base Part Number
SA*

Pin Count
18

JESD-30 Code
R-MDMA-P18

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
16V

Supply Voltage-Min (Vsup)
10V

Number of Circuits
2

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

Current - Supply
90mA

Amplifier Type
PWM (Audio, Motor)

Output Current-Max
7.5A

Current - Output / Channel
5A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SA09.

Datasheets:

apexmicrotechnology-sa09-datasheets-3201.pdf

SA09 Overview

In the package, you will find a 18-DIP Module-case to contain the op amp ic. The instrumentation amplifier in this picture is of the PWM (Audio, Motor)-type. A Bulk case is used for delivering the op amp. During the past two weeks, there have been close to 18 terminations. A total of 18 pins are located on this board. This linear amplifier should be powered by an 12V battery. For this electrical component, Through Hole is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -25°C~85°C , which is a good operating temperature. A instrumentation amplifier like this has 2 circuits. There is a recommendation that this electrical part be used with a supply with 90mA current rating. In this linear amplifier, there is also an analog IC called a BRUSH DC MOTOR CONTROLLER.

SA09 Features

18 Pins
supply voltage of 12V

SA09 Applications

There are a lot of Apex Microtechnology
SA09 Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
