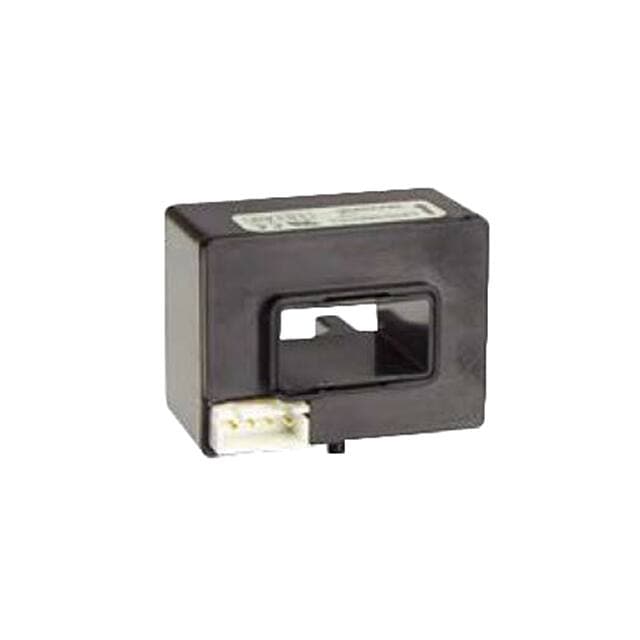

Tamura S29S1T0D24ZJ
Tamura S29S1T0D24ZJ

Tamura S29S1T0D24ZJ

Manufacturer No:

S29S1T0D24ZJ

Manufacturer:

Tamura

Package:

Module, Single Pass Through

Description:

Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C ±15V~24V DC~100kHz 1000A Linearity-±0.1%

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S29S1T0D24ZJ information

Tamura S29S1T0D24ZJ technical specifications, attributes, parameters and parts with similar specifications to Tamura S29S1T0D24ZJ.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Panel
  • Package / Case
  • Module, Single Pass Through
  • Weight
  • 560.186577g
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Published
  • 2016
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Voltage - Supply
  • ±15V~24V
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 1kA
  • Frequency
  • DC~100kHz
  • Output
  • Ratiometric, Current
  • Current - Supply (Max)
  • 200mA
  • Operating Supply Voltage
  • 24V
  • Number of Channels
  • 1
  • Polarization
  • Bidirectional
  • Response Time
  • 1?s
  • Sensor Type
  • Hall Effect, Closed Loop
  • Linearity
  • ±0.1%
  • For Measuring
  • AC/DC
  • Current - Sensing
  • 1000A
  • Height
  • 95mm
  • Width
  • 34mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Tamura S29S1T0D24ZJ.

Datasheets:

S29S1T0D24ZJ Overview


Safety measures are taken to protect the current sensors by putting them in Module, Single Pass Through packages. For protection, these sensors are packaged in the Bulk. Current sensors should only output 200mA current. A 1kA current sensor has been designed for a 1kA current. When operating, the sensors could supply 24V.

S29S1T0D24ZJ Features


Operating Temperature: -40°C~85°C
1 Channels
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±15V~24V
Frequency: DC~100kHz
Sensing Current: 1000A
Module, Single Pass Through Package


S29S1T0D24ZJ Applications


There are a lot of Tamura
S29S1T0D24ZJ Current Sensors applications.


  • Overcurrent Detection
  • Frequency, Voltage, and Solar Inverters
  • Electrical drives
  • General purpose inverters
  • AC variable speed drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies(UPS)
  • Switched Mode Power Supplies(SMPS)
  • Power supplies for welding applications
