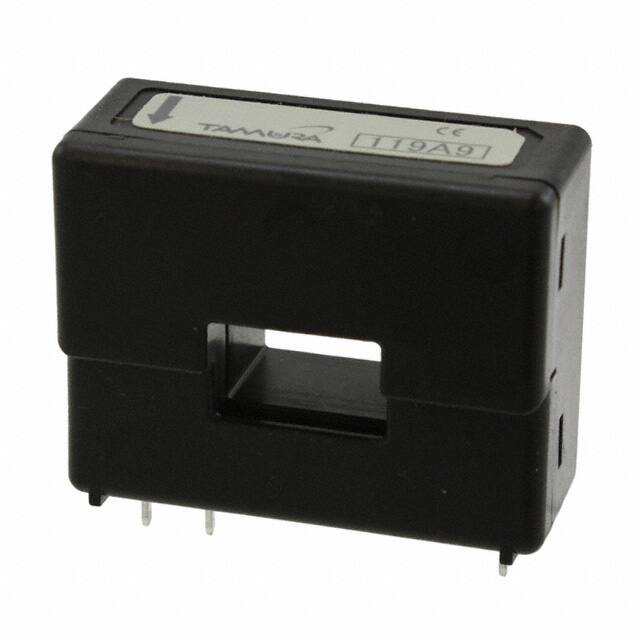

Tamura S26P200D15Y

Manufacturer No:

S26P200D15Y

Manufacturer:

Tamura

Package:

Module

Description:

S26PXXXD15Y Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C ±12V~15V DC~100kHz 200A Accuracy-±0.4% Linearity-±0.15%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S26P200D15Y information

Tamura S26P200D15Y technical specifications, attributes, parameters and parts with similar specifications to Tamura S26P200D15Y.

Type
Parameter

Factory Lead Time
22 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
S26PXXXD15Y

Published
2006

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
±12V~15V

Frequency
DC~100kHz

Output
Ratiometric, Current

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
16mA

Accuracy
±0.4%

Response Time
1?s

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.15%

For Measuring
AC/DC

Current - Sensing
200A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Tamura S26P200D15Y.

Datasheets:

tamura-s26p200d15y-datasheets-3807.pdf

S26P200D15Y Overview

Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Bulk. There should be no current greater than 16mA coming from current sensors.

S26P200D15Y Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~100kHz
Sensing Current: 200A
Module Package

S26P200D15Y Applications

There are a lot of Tamura
S26P200D15Y Current Sensors applications.

Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
