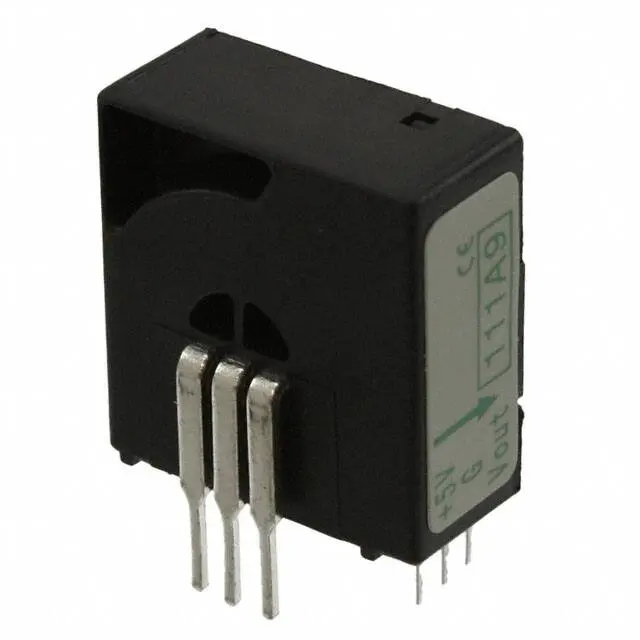

Tamura S22P025S05

Manufacturer No:

S22P025S05

Manufacturer:

Tamura

Package:

Module

Description:

Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -10°C~85°C 5V DC~100kHz Linearity-±0.2%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S22P025S05 information

Tamura S22P025S05 technical specifications, attributes, parameters and parts with similar specifications to Tamura S22P025S05.

Type
Parameter

Factory Lead Time
24 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Module

Number of Pins
3

Operating Temperature
-10°C~85°C

Packaging
Bulk

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
5V

Current Rating
25A

Frequency
DC~100kHz

Output
Ratiometric, Voltage

Output Voltage
625mV

Operating Supply Voltage
5V

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
12.5mA

Max Output Voltage
3.125V

Response Time
1?s

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.2%

For Measuring
AC/DC

Length
22.2mm

Width
12.7mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Tamura S22P025S05.

Datasheets:

tamura-s22p006s05-datasheets-2342.pdf

S22P025S05 Overview

For safety reasons, the current sensors are enclosed in Module packages. To protect the current sensors against damage, they have been packaged in the Bulk. Current sensors should not provide currents greater than 12.5mA. In the current sensor design, 25A is the current for which the sensors are designed. This current sensor consists of 3 pins. When operating, the current sensors could deliver a voltage of 5V. The voltage output by current sensors should be 625mV.

S22P025S05 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -10°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 5V
Frequency: DC~100kHz
Module Package

S22P025S05 Applications

There are a lot of Tamura
S22P025S05 Current Sensors applications.

Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
