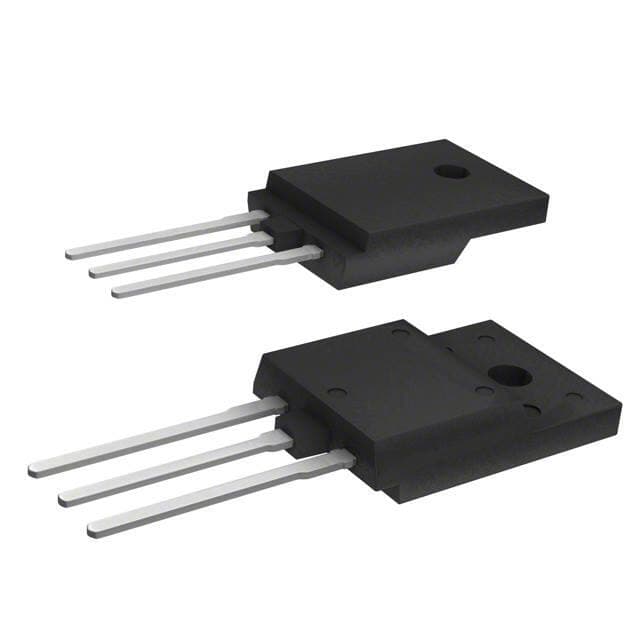

ST S2000AF
ST S2000AF

ST S2000AF

Manufacturer No:

S2000AF

Manufacturer:

ST

Package:

ISOWATT218FX

Description:

NPN 150°C TJ 200?A 1 Elements 3 Terminations SILICON NPN ISOWATT218FX Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S2000AF information

ST S2000AF technical specifications, attributes, parameters and parts with similar specifications to ST S2000AF.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • ISOWATT218FX
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tube
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 50W
  • Base Part Number
  • S2000
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power Dissipation
  • 50W
  • Case Connection
  • ISOLATED
  • Transistor Application
  • SWITCHING
  • Polarity/Channel Type
  • NPN
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 700V
  • Max Collector Current
  • 8A
  • Current - Collector Cutoff (Max)
  • 200?A
  • Vce Saturation (Max) @ Ib, Ic
  • 5V @ 1A, 4.5A
  • Collector Emitter Breakdown Voltage
  • 700V
  • Emitter Base Voltage (VEBO)
  • 9V
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST S2000AF.

Datasheets:

S2000AF Overview


DC current gain' is equal to the ratio of the collector current to the base current, something like Ic/Ib, and this device has 4.5 @ 4.5A 5V DC current gain.VCE saturation indicates Ic is at maximum level (saturated), whereas vce saturation (Max) indicates there is no saturation.Keeping the emitter base voltage at 9V can result in a high level of efficiency.When collector current reaches its maximum, it can reach 8A volts.

S2000AF Features


the DC current gain for this device is 4.5 @ 4.5A 5V
the vce saturation(Max) is 5V @ 1A, 4.5A
the emitter base voltage is kept at 9V


S2000AF Applications


There are a lot of STMicroelectronics
S2000AF applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
