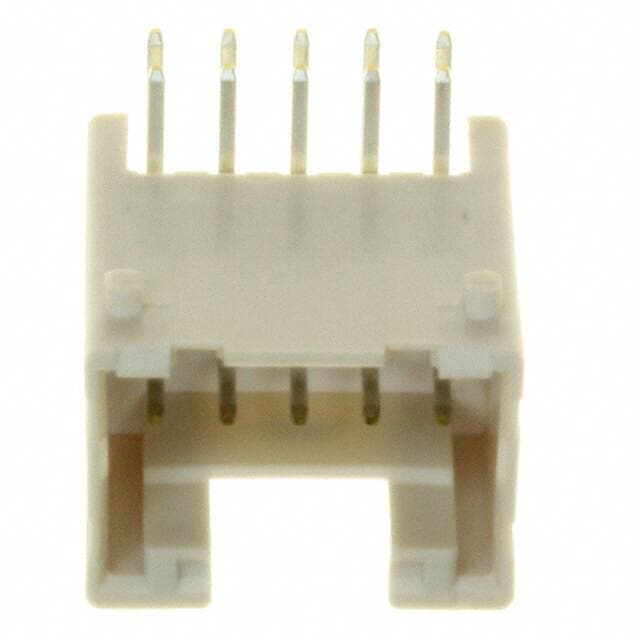

JST S10B-PUDSS-1(LF)(SN)

Manufacturer No:

S10B-PUDSS-1(LF)(SN)

Manufacturer:

Package:

Description:

PUD Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6, Glass Filled 10-Position Board to Cable/Wire 0.335 8.51mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S10B-PUDSS-1(LF)(SN) information

JST S10B-PUDSS-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S10B-PUDSS-1(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
PUD

Published
2011

JESD-609 Code
e3

Feature
Board Guide

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Number of Rows
2

Voltage - Rated
250V

Additional Feature
POLARIZED, SIDE ENTRY, SHROUDED

Fastening Type
Latch Holder

Contact Finish - Mating
Tin

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Insulation Height
0.335 8.51mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.118 3.00mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST S10B-PUDSS-1(LF)(SN).

S10B-PUDSS-1(LF)(SN) Description

The S10B-PUDSS-1(LF)(SN) is a 2.0mm pitch/Disconnectable Crimp style connector. This board-to-wire connector features a secure locking mechanism and is built with a double-row, 2.0 mm pitch, and crimping method. The stable electric connection is shown to be resistant to conditions like vibration, pinching, and dry circuit despite accomplishing minimal insertion force. Because the tip of the locking mechanism in the receptacle does not extend from its area, the locking can be released even if the header is enclosed by a case wall within the height of the header.
