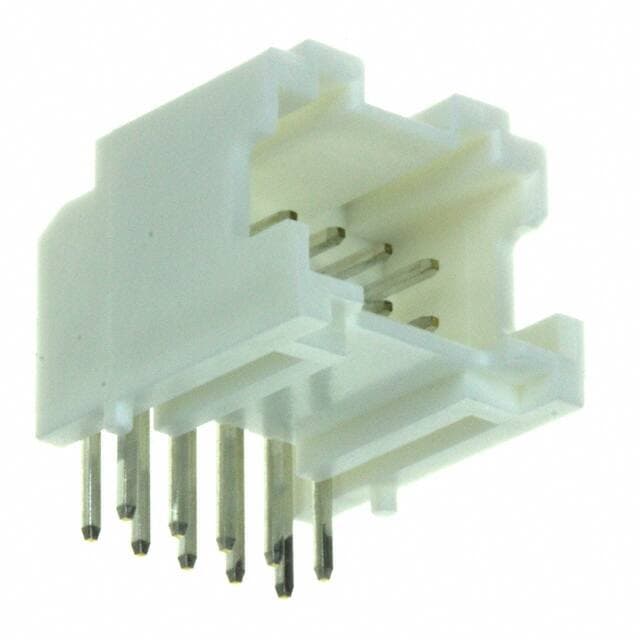

JST S10B-PADSS-1(LF)(SN)
JST S10B-PADSS-1(LF)(SN)

JST S10B-PADSS-1(LF)(SN)

Manufacturer No:

S10B-PADSS-1(LF)(SN)

Manufacturer:

JST

Package:

Description:

PAD Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.413 10.49mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S10B-PADSS-1(LF)(SN) information

JST S10B-PADSS-1(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST S10B-PADSS-1(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Bulk
  • Series
  • PAD
  • Published
  • 2010
  • JESD-609 Code
  • e3
  • Feature
  • Board Guide
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 10
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 250V
  • Additional Feature
  • POLARIZED, SHROUDED, SIDE ENTRY
  • HTS Code
  • 8536.69.40.40
  • Contact Finish - Mating
  • Tin
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 3A
  • Insulation Height
  • 0.413 10.49mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Natural
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • UL Flammability Code
  • 94V-0
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for JST S10B-PADSS-1(LF)(SN).

Datasheets:

S10B-PADSS-1(LF)(SN) Overview


The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number PAD belongs to the PAD Series.Further, there are features such as POLARIZED, SHROUDED, SIDE ENTRY, to name only a few.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.This device operates at a temperature of -25°C~85°C.

S10B-PADSS-1(LF)(SN) Features


PAD series


S10B-PADSS-1(LF)(SN) Applications


There are a lot of JST Sales America Inc.
S10B-PADSS-1(LF)(SN) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
