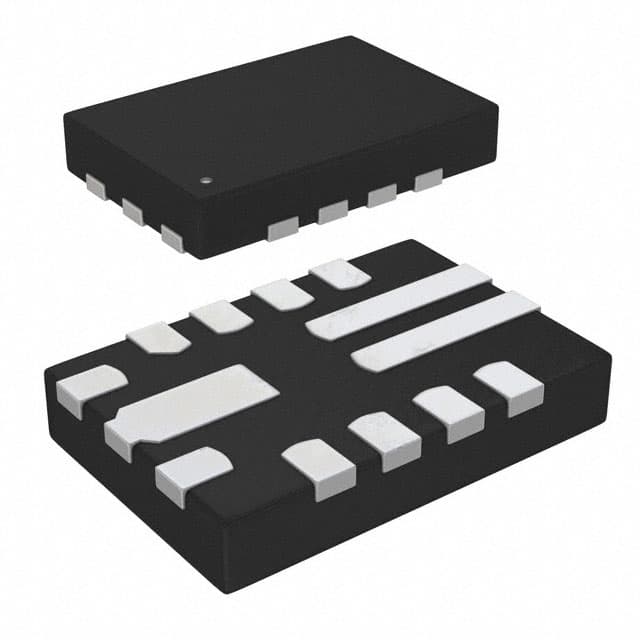

RICHTEK RT6236ALGQUF
Manufacturer No:
RT6236ALGQUF
Manufacturer:
Package:
13-UFQFN Exposed Pad
Description:
13 Terminals 4.5V 13-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 650kHz Tape & Reel (TR) 6A 13-UFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RT6236ALGQUF information
RICHTEK RT6236ALGQUF technical specifications, attributes, parameters and parts with similar specifications to RICHTEK RT6236ALGQUF.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 13-UFQFN Exposed Pad
- Number of Pins
- 13
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Series
- ACOT™
- Published
- 2015
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 13
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Function
- Step-Down
- Number of Outputs
- 1
- Voltage - Input (Max)
- 18V
- Output Type
- Adjustable
- Voltage - Input (Min)
- 4.5V
- Input Voltage-Nom
- 12V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Current - Output
- 6A
- Max Output Voltage
- 8V
- Voltage - Output (Min/Fixed)
- 0.7V
- Topology
- Buck
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 650kHz
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 700mV
- Length
- 3mm
- Height Seated (Max)
- 0.6mm
- Width
- 2mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for RICHTEK RT6236ALGQUF.
Datasheets:
Environmental Information:
RT6236ALGQUF Overview
As a result of the use of the Tape & Reel (TR) package, the performance of this voltage regulator is optimized. As you can see, this harley voltage regulator contains 13 terminations. There are two types of analog ICs on this voltage regulator. The first type is a SWITCHING REGULATOR-type IC. Space-saving 13-UFQFN Exposed Pad packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. ICs such as this voltage regulator are capable of generating Adjustable outputs through their output pins. The voltage regulator 12v fits the Surface Mount mounting hole. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. 650kHz is the switching frequency of this DC-DC switching regulator. A dc to dc voltage regulator's minimum input voltage of 4.5V is required for this voltage regulator to operate. The output voltage of this voltage regulator (Min/Fixed) amounts to 0.7V volts. Featuring a maximum design flexibility of 6A, dc to dc voltage regulator has a maximum output current of 6A. The maximum input voltage of voltage regulator is 18V. As a result of its peak reflow temperature, this voltage regulator is virtually indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 12V is provided. In order to operate voltage regulator, there are 13 pins that must be connected. For this switching regulator, it is recommended that the output voltage is at least 700mV volts. As a result, it is able to provide adjusting voltage regulator a maximum output voltage of 8V. A type of DC-DC switching regulator, belonging to the ACOT™ family of voltage regulators, is what we are describing here.
RT6236ALGQUF Features
1 outputs
Peak reflow temperature (Cel) of NOT SPECIFIED
13 pins
